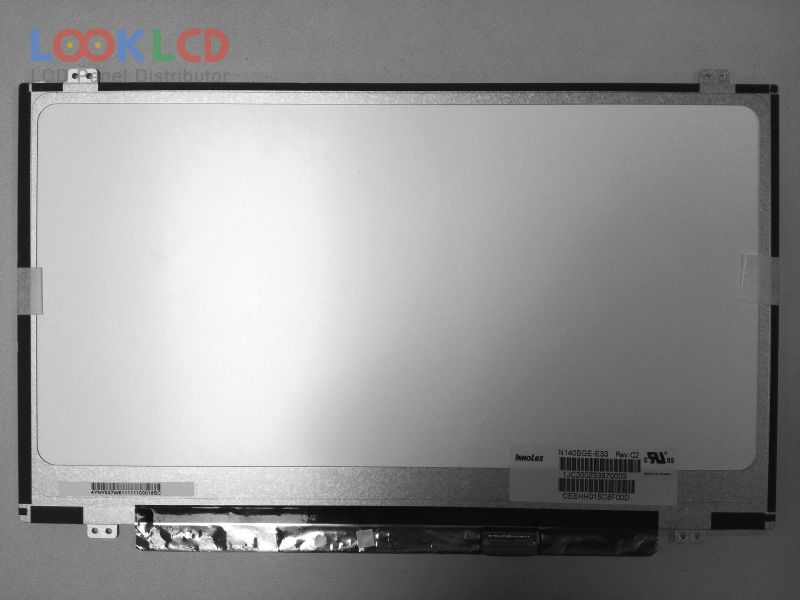

| Varenummer | N140BGE-E33 |
| Mærke | Innolux |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | INNOLUX |
| panel model | N140BGE-E33 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 320.4×205.1×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (1 Lane), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-E43 | Innolux | 14.0 | 1366×768 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L22 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
| BT140GW01 V.5 | Innolux | 14.0 | 1366×768 |
| LP141WX3-TLA3 | LG Display | 14.1 | 1280×800 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LQ106K1LA05 | SHARP | 10.6 | 1280×768 |
| LTD121KX6B | TOSHIBA | 12.1 | 1280×800 |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN121W1-L02 | Samsung | 12.1 | 1280×800 |
| LTN140AT07-B01 | Samsung | 14.0 | 1366×768 |
| LTN150U2-L02 | Samsung | 15.0 | 1600×1200 |
| N140FGE-EA2 | Innolux | 14.0 | 1600×900 |
