| Varenummer | N156B3-L01 |
| Mærke | Innolux |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |

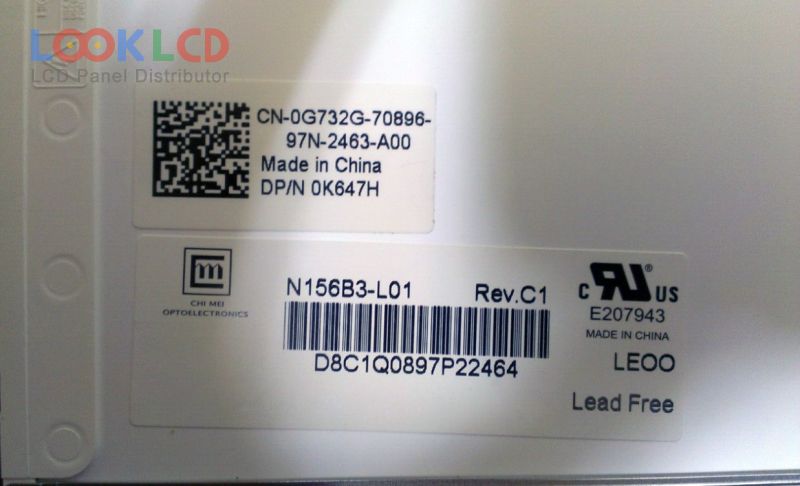

| panel model | N156B3-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×209.5×6.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156B6-L06 | Innolux | 15.6 | 1366×768 |
| N156B6-L0B | Innolux | 15.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
| N156BGE-LB1 | Innolux | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| CLAA150PB03 | CPT | 15.0 | 1400×1050 |
| CLAA184FP01 | CPT | 18.4 | 1920×1080 |
| LP140WD2-TLE2 | LG Display | 14.0 | 1600×900 |
| LTN121AT01-002 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-801 | Samsung | 12.1 | 1280×800 |
| LTN133AT27-102 | Samsung | 13.3 | 1366×768 |
| LTN140AT21-002 | Samsung | 14.0 | 1366×768 |
| LTN150XB-L03 | Samsung | 15.0 | 1024×768 |
| N156B6-L0B | Innolux | 15.6 | 1366×768 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
