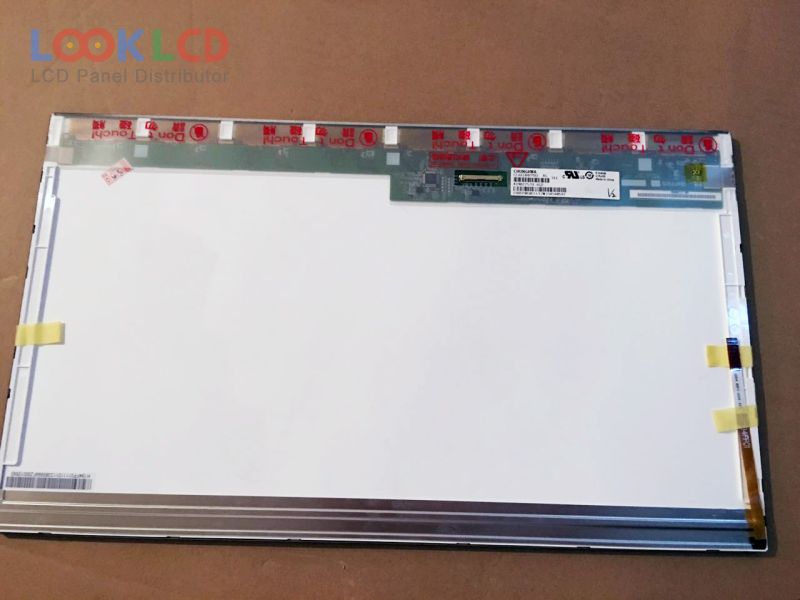

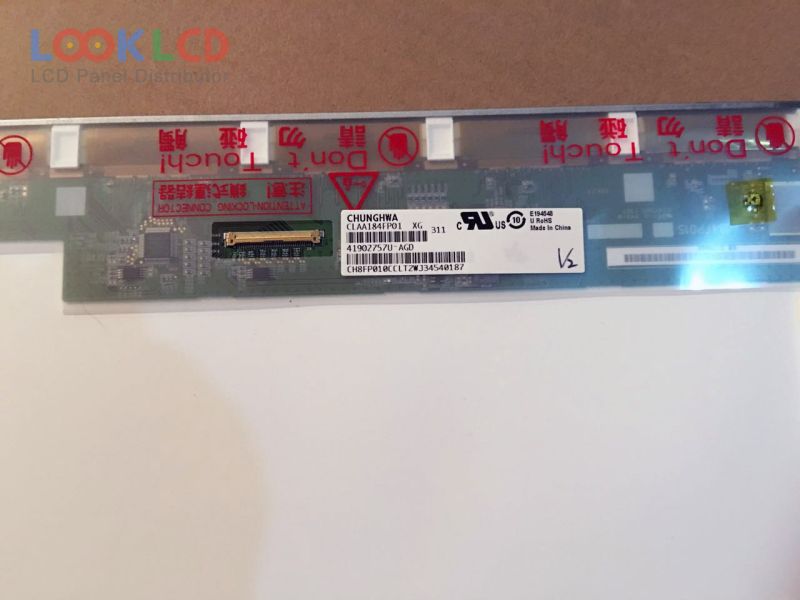

| Varenummer | CLAA184FP01 |
| Mærke | CPT |
| Størrelse | 18.4 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA184FP01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 18.4 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 408.96×230.04 mm |
| omrids | 422.5×248×6.3 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193160% |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
