| Varenummer | ND068-101A1 |
| Mærke | |
| Størrelse | 6.8 |
| Ansøgning | CNS |
| Løsning | 1280×480 |
| Sammensætning | LCM |
| Lysstyrke | 700 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | |

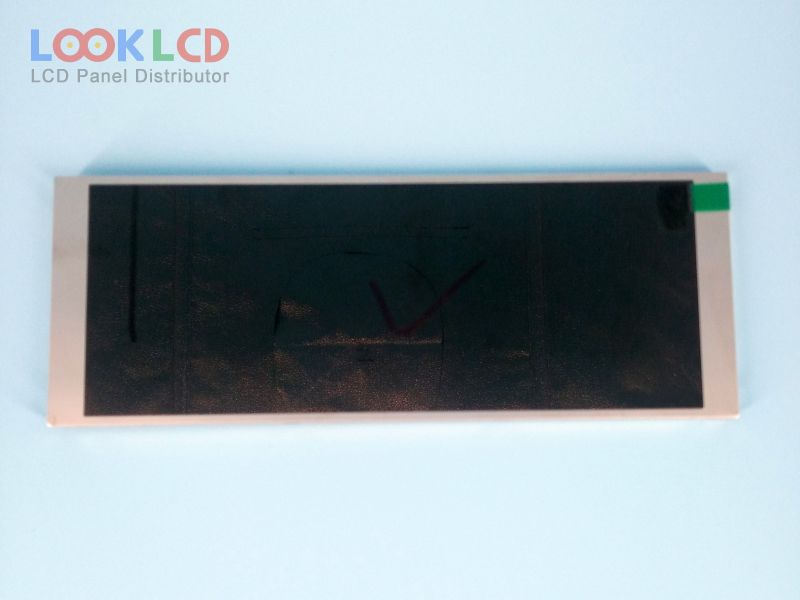

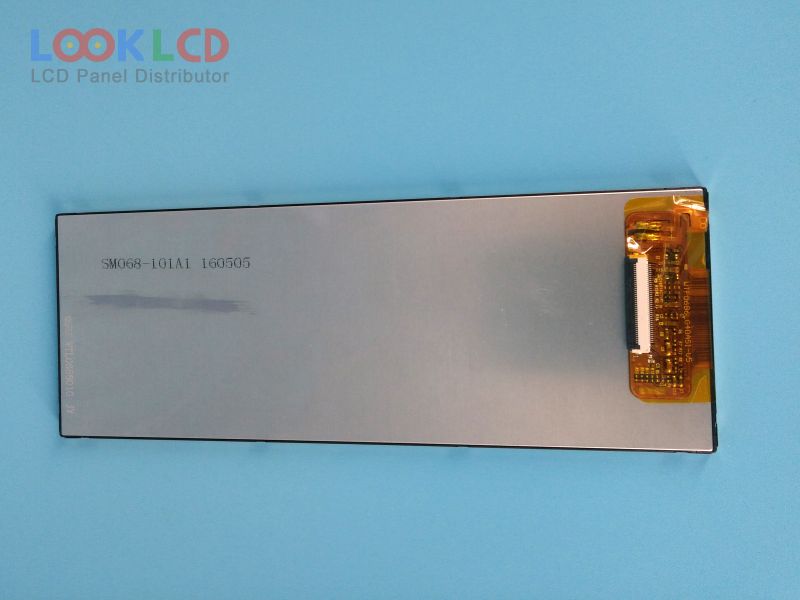

| panel model | ND068-101A1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.8 inch |
| løsning | 1280(RGB)×480 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 160.59×60.22 mm |
| omrids | 181×66.6×7.15 mm |
| overflade | |
| lysstyrke | 700 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 1.8/3.3/9.7/18/-8V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
