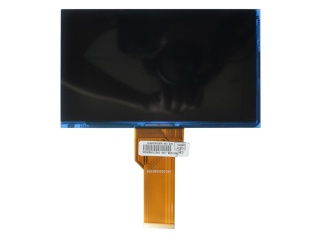

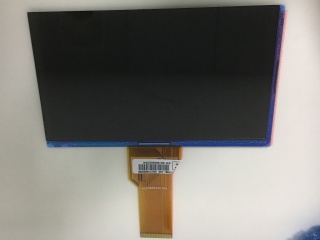

| Varenummer | NE070NB-04G |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | Digital Photo Frame |
| Løsning | 800×480 |
| Sammensætning | a-Si TFT-LCD , CELL |
| Lysstyrke | |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No |
| Interface | Parallel |
| mærke | Innolux |
| diagonal størrelse | 7.0 inch |
| pixel format | 800(RGB)×480 [WVGA] 134PPI |
| aktivt område | 154.08(H)×85.92(V) mm |
| bezel område | - |
| luminans | 0 cd/m² |
| visningsretning | - |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10) |
| pladetykkelse | 0.50+0.50 mm |
| støtte farve | 16.7M |
| vægt | 47.0g (Typ.) |
| billedhastighed | 60Hz |
| d-ic detalje | COG Built-in 1 source + 1 gate chips |
| interface type | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| Strømforsyning | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| miljø | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | NE070NB-04G |
| type | a-Si TFT-LCD , CELL |
| konfiguration | RGB Vertical Stripe |
| omrids dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| behandling | Antiglare |
| kontrastforhold | 500:1 (Typ.) (TM) |
| responstid | 25 (Typ.)(Tr+Td) |
| driftstilstand | TN, Normally White, Transmissive |
| transmission | 4.61% (Typ.)(with Polarizer) |
| lyskilde | No B/L |
| designet til | Digital Photo Frame |
| berøringspanel | Without |
