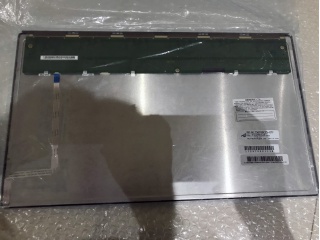

| Varenummer | NL13676BC25-07F |
| Mærke | NLT |
| Størrelse | 15.6 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 1366×768 |
| Sammensætning | a-Si TFT-LCD , LCM |
| Lysstyrke | |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | 6 |
| Interface | LVDS |
| panel mærke | NLT |
| panelstørrelse | 15.6" |
| løsning | 1366(RGB)×768, WXGA, 100PPI |
| udstillingsområde | 344.232(W)×193.536(H) mm |
| konturstørrelse | 363.8(W)×215.9(H) ×13.15(D) mm |
| lysstyrke | 1250 cd/m² (Typ.) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10) |
| bedste udsigt på | 6 o'clock |
| vise farver | 262K/16.7M 60% NTSC |
| frekvens | 60Hz |
| panelvægt | 1.07/1.17Kgs (Typ./Max.) |
| signal interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| indgangsspænding | 3.3V (Typ.) |
| miljø | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| panel model | NL13676BC25-07F |
| paneltype | a-Si TFT-LCD , LCM |
| pixel format | RGB Vertical Stripe |
| bezel åbning | 347.55(W)×196.85(H) mm |
| overflade | Antiglare, Hard coating (3H) |
| kontrastforhold | 900:1 (Typ.) (TM) |
| visningstilstand | TN, Normally White, Transmissive |
| responstid | 3/15 (Typ.)(Tr/Td) |
| lampe type | 6 strings WLED , 7K hours , Without Driver |
| berøringsskærm | Without |
| Ansøgning | Industrial Outdoor High Brightness |
