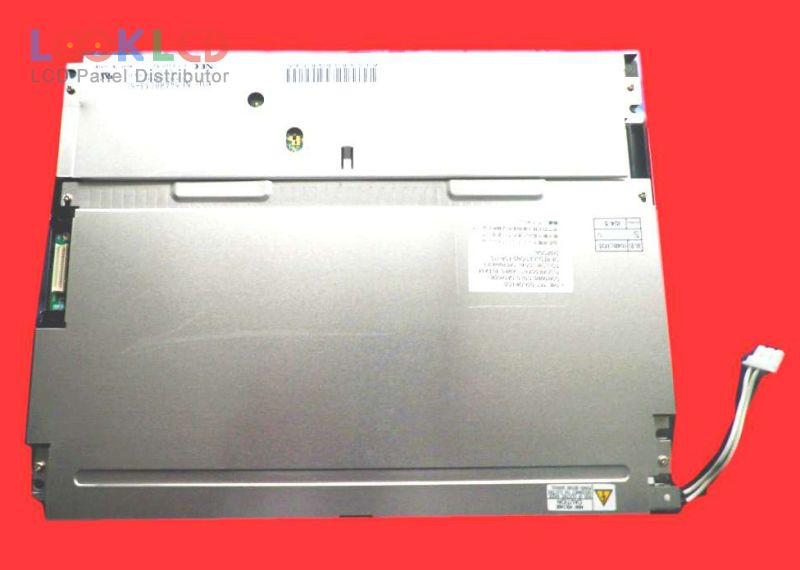

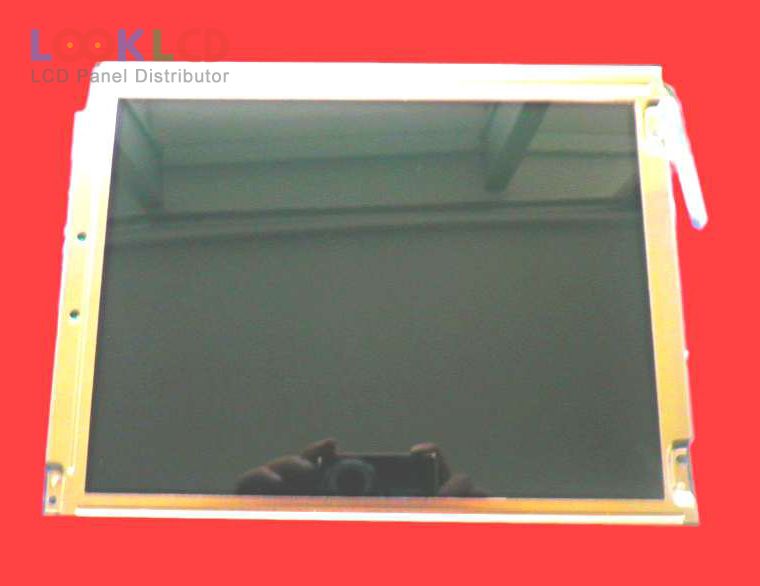

| Varenummer | NL6448BC33-50 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 100:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448BC33-50 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×185.1×11.5 mm |
| overflade | Clear, Hard coating (2H), Antireflection |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 75/55/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | IA |
| NL6448AC33-18 | NLT | 10.4 | 640×480 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448AC33-24 | NLT | 10.4 | 640×480 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL6448BC33-54 | NLT | 10.4 | 640×480 |
| AA070ME01 | Mitsubishi | 7.0 | 800×480 |
| AA121SJ03 | Mitsubishi | 12.1 | 800×600 |
| DLC0570BDG-T-2 | Other | 5.7 | 640×480 |
| EL320.240.36 LK | Lumineq | 5.7 | 320×240 |
| G104SN03 V4 | AUO | 10.4 | 800×600 |
| G104VN01 V1 | AUO | 10.4 | 640×480 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ121S1DG43 | SHARP | 12.1 | 800×600 |
| LQ150X1LG71 | SHARP | 15.0 | 1024×768 |
| PD064VT8 | E Ink | 6.4 | 640×480 |
