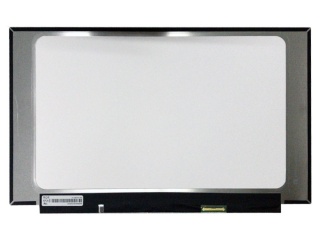

| Varenummer | NV156FHM-NY1 |
| Mærke | BOE |
| Størrelse | 15.6 |
| Ansøgning | Laptop Gaming |
| Løsning | 1920×1080 |
| Sammensætning | LCM, a-Si TFT-LCD |
| Lysstyrke | |
| CR | 1200:1 |
| Farver | 16.7M |
| Baggrundsbelysning | 6 |
| Interface | eDP |
| fabrikant | BOE |
| modelnavn | NV156FHM-NY1 (BOE085C) |
| skærmstørrelse | 15.6 inch |
| skærmtype | LCM, a-Si TFT-LCD |
| pixel antal | 1920(RGB)×1080 (FHD) 141PPI |
| arrangement | RGB Vertical Stripe |
| aktivt område (mm) | 344.16 × 193.59 (H×V) |
| omrids (mm) | 350.66 × 216.25 × 2.6 (H×V×D) |
| rammeareal (mm) | - |
| behandling | Antiglare (Haze 25%) |
| luminans | 300 cd/m² (Typ.) |
| kontrastforhold | 1200 : 1 (Typ.) (TM) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| respons | 16.4 (Typ.)(Tr+Td) ms |
| god udsigt kl | Symmetry |
| arbejdstilstand | HADS, Normally Black, Transmissive |
| farvedybde | 16.7M 72% NTSC |
| baggrundsbelysning | 6 strings WLED , 15K hours , With LED Driver |
| konturform | Slim (PCBA Flat, T≤3.2mm) |
| anvendes til | Laptop Gaming |
| opdateringshastighed | 144Hz |
| berøringsskærm | Without |
| signaltype | eDP (2 Lanes) , HBR2 (5.4G/lane) , Connector 30 pins |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| CLAA156WB11A | CPT | 15.6 | 1366×768 |
| G156BGE-L01 | Innolux | 15.6 | 1366×768 |
| LP156WF1-TLA1 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TLF4 | LG Display | 15.6 | 1920×1080 |
| N156B6-L0B | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
