| Varenummer | NV156FHM-NY8 |
| Mærke | BOE |
| Størrelse | 15.6 |
| Ansøgning | Laptop Gaming |
| Løsning | 1920×1080 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 1.06B |
| Baggrundsbelysning | 10S5P |
| Interface | eDP |
| fabrikant | BOE |
| skærmstørrelse | 15.6 inch |
| pixel antal | 1920(RGB)×1080 (FHD) 141PPI |
| aktivt område (mm) | 344.16 × 193.59 (H×V) |
| rammeareal (mm) | - |
| luminans | 300 cd/m² (Typ.) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| god udsigt kl | Symmetry |
| farvedybde | 1.06B 100% sRGB |
| konturform | Slim (PCBA Flat, T≤3.2mm) |
| opdateringshastighed | 165Hz |

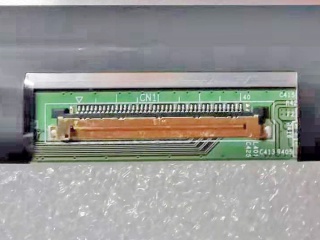

| signaltype | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnavn | NV156FHM-NY8 (BOE0998) |
| skærmtype | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 350.66 × 214.75 × 2.6 (H×V×D) |
| behandling | Antiglare, Hard coating (3H) |
| kontrastforhold | 1000 : 1 (Typ.) (TM) |
| respons | 9 (Typ.)(Tr+Td); 8 (Typ.)(G to G) ms |
| arbejdstilstand | HADS, Normally Black, Transmissive |
| baggrundsbelysning | 10S5P WLED , 15K hours , With LED Driver |
| anvendes til | Laptop Gaming |
| berøringsskærm | Without |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| LP156WF4-SLB2 | LG Display | 15.6 | 1920×1080 |
| LTN156AT20-W01 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-401 | Samsung | 15.6 | 1366×768 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
