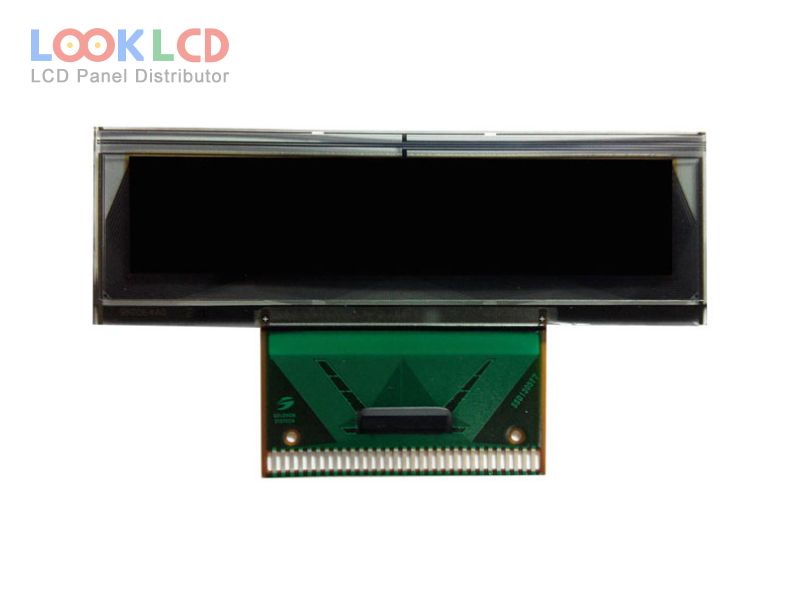

| Varenummer | OEL9M0064-R-E |
| Mærke | Other |
| Størrelse | 2.0 |
| Ansøgning | IA |
| Løsning | 128×32 |
| Sammensætning | OLED |
| Lysstyrke | |
| CR | 10000:1 |
| Farver | Mono(Red) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | TRULY |
| panel model | OEL9M0064-R-E |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 2.0 inch |
| løsning | 128×32 |
| aktivt område | 50.535×10.695 mm |
| omrids | 59×18.86×1.6 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | 10000 : 1 (Min.) |
| vise farver | Mono(Red) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 100Hz |
| driver ic | TAB Built-in SSD1305T7R1 |
| signal interface | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| Ansøgning | IA |
