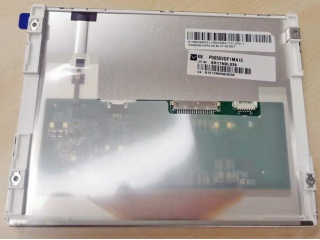

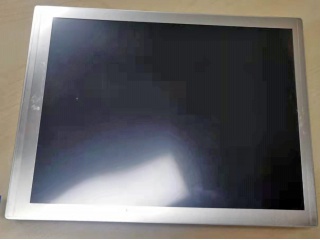

| Varenummer | P0650VGF1MA10 |
| Mærke | TIANMA |
| Størrelse | 6.5 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 640×480 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | 6S2P |
| Interface | LVDS |
| panel mærke | TIANMA |
| panel model | P0650VGF1MA10 |
| panelstørrelse | 6.5" |
| paneltype | a-Si TFT-LCD, LCM |
| løsning | 640(RGB)×480, VGA, 122PPI |
| pixel format | RGB Vertical Stripe |
| udstillingsområde | 132.48(W)×99.36(H) mm |
| bezel åbning | 135.48(W)×102.36(H) mm |
| konturstørrelse | 153(W)×118(H) ×11.2(D) mm |
| overflade | Antiglare |
| lysstyrke | 800 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) (TM) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| visningstilstand | SFT, Normally Black, Transmissive |
| bedste udsigt på | Symmetry |
| responstid | 30 (Typ.)(Tr+Td) |
| vise farver | 262K/16.7M 70% NTSC |
| lampe type | 6S2P WLED , 70K hours , With LED Driver |
| frekvens | 60Hz |
| berøringsskærm | Without |
| panelvægt | TBD |
| Ansøgning | Industrial Outdoor High Brightness Automotive Display |
| signal interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| indgangsspænding | 3.3V (Typ.) |
| miljø | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| DJ065NA-01C | Innolux | 6.5 | |
| L5F30818P03 | SONY | 6.5 | 800×480 |
| L5F30947T00 | Epson | 6.5 | 800×480 |
| L5F30947T0A | Epson | 6.5 | 800×480 |
| LB065WQ3-TD02 | LG Display | 6.5 | 400×240 |
| LQ065T9DZ03 | SHARP | 6.5 | 400×240 |
| LQ065Y5DG01 | SHARP | 6.5 | 800×480 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| LQ065Y5DZ01 | SHARP | 6.5 | 800×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
