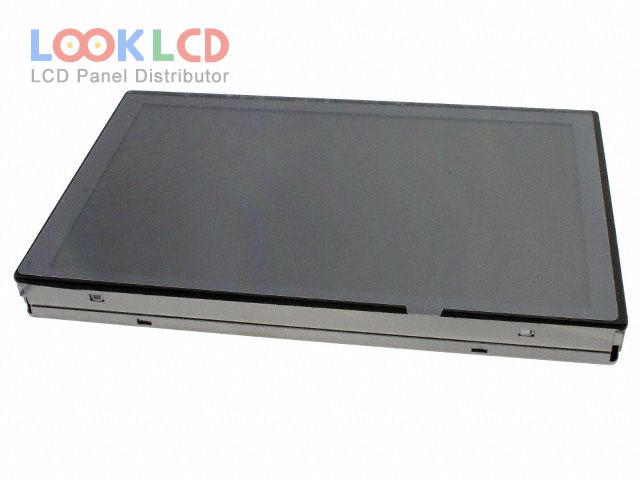

| Varenummer | LQ065Y5DZ01 |
| Mærke | SHARP |
| Størrelse | 6.5 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 675 |
| CR | 1700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ065Y5DZ01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.5 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 141.6×84.96 mm |
| omrids | 161.8×100.6×17.5 mm |
| overflade | |
| lysstyrke | 675 cd/m² (Typ.) |
| kontrastforhold | 1700:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/5 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | Parallel RGB (1 ch, 4-bit), 68 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
