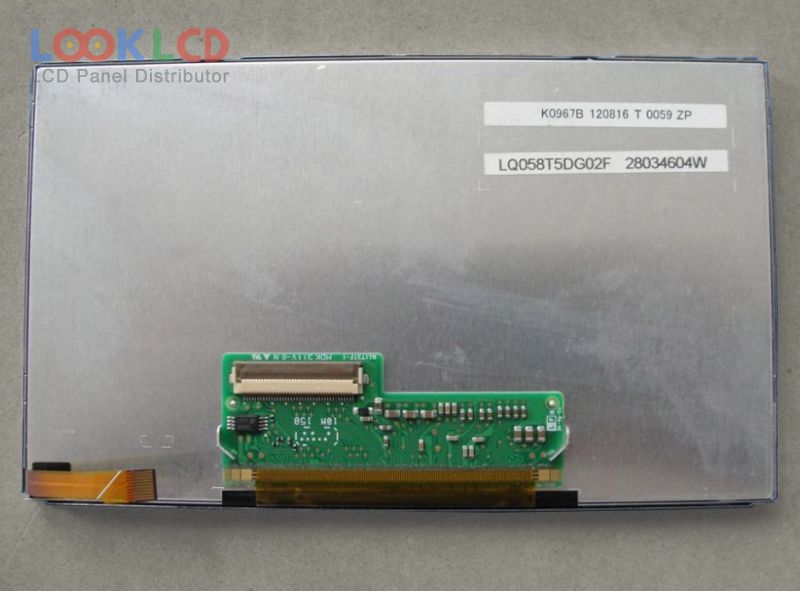

| Varenummer | LQ058T5DG02F |
| Mærke | SHARP |
| Størrelse | 5.8 |
| Ansøgning | CNS |
| Løsning | 480×240 |
| Sammensætning | LCM |
| Lysstyrke | 420 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ058T5DG02F |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.8 inch |
| løsning | 480(RGB)×240 , WQVGA |
| visningstilstand | Transmissive |
| aktivt område | 128.4×70.92 mm |
| omrids | 139×82.7 mm |
| overflade | |
| lysstyrke | 420 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| lampe type | WLED |
| signal interface | Parallel RGB (1 ch, 6-bit) |
| rohs: | |
| Ansøgning | CNS |
