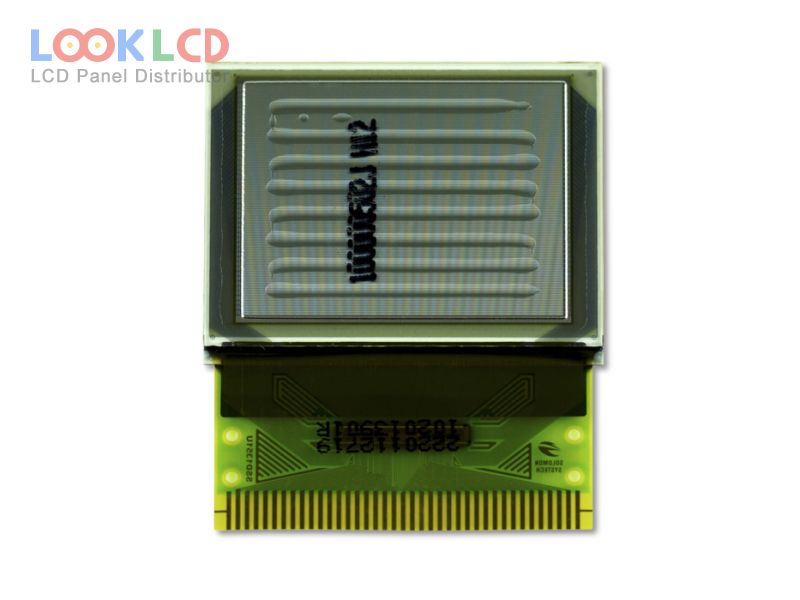

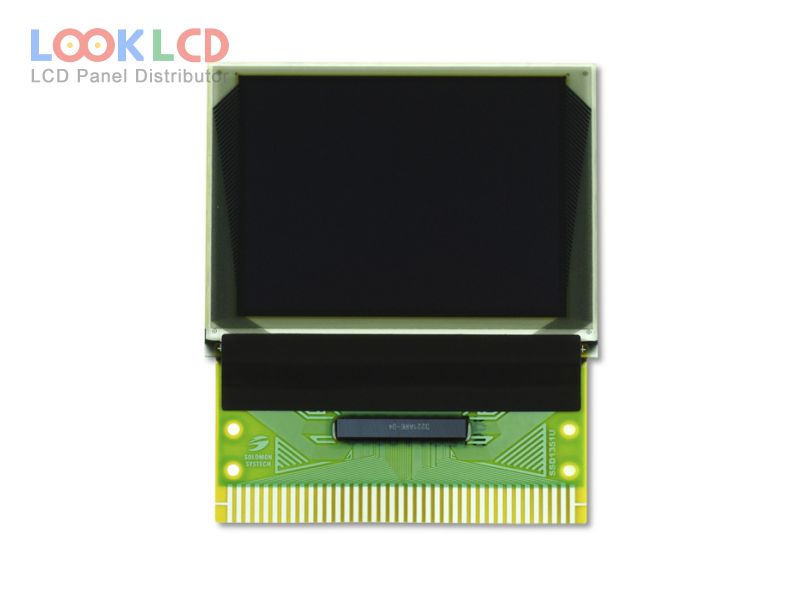

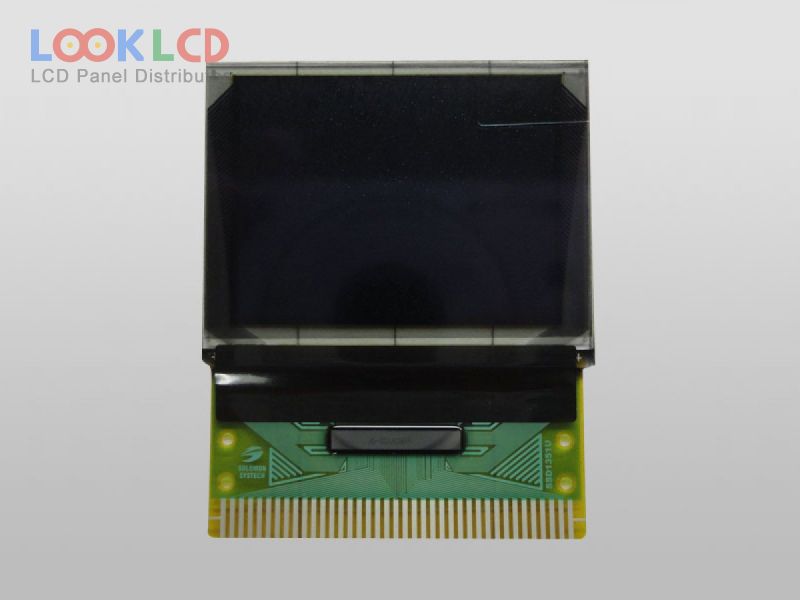

| Varenummer | RGS13128096FH003 |
| Mærke | RiTdisplay |
| Størrelse | 1.3 |
| Ansøgning | SW |
| Løsning | 128×96 |
| Sammensætning | OLED |
| Lysstyrke | 90 |
| CR | 2000:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | RiTdisplay |
| panel model | RGS13128096FH003 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 1.3 inch |
| løsning | 128(RGB)×96 |
| aktivt område | 26.279×19.708 mm |
| omrids | 33×25.8×1.31 mm |
| overflade | Antiglare |
| lysstyrke | 90 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Min.) |
| vise farver | 65K/262K (6-bit), CIE193166% |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 105Hz |
| driver ic | COF Built-in SSD1351UR1 |
| signal interface | 8/16/18-bit 6800/8080 parallel, SPI, 39 pins |
| indgangsspænding | 15/2.7/1.8V (Typ.)(VCC/VCI/VDDIO) |
| Ansøgning | SW |
| E1392AM1.A | EDO | 1.39 | 400×400 |
| LG 1.3 Circular P-OLED | LG Display | 1.3 | 320×320 |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| OEL9M1007-B-E | Other | 1.1 | 96×96 |
| OEL9M1010-Y-E | Other | 0.95 | 96×64 |
| RGS13128096FH003 | RiTdisplay | 1.3 | 128×96 |
| RGS15128128WR000 | RiTdisplay | 1.5 | 128×128 |
