| Varenummer | LPM012A154A |
| Mærke | JDI |
| Størrelse | 1.2 |
| Ansøgning | SW |
| Løsning | 218×218 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 8 |
| Baggrundsbelysning | No B/L |
| Interface | |
| panel mærke | JDI |

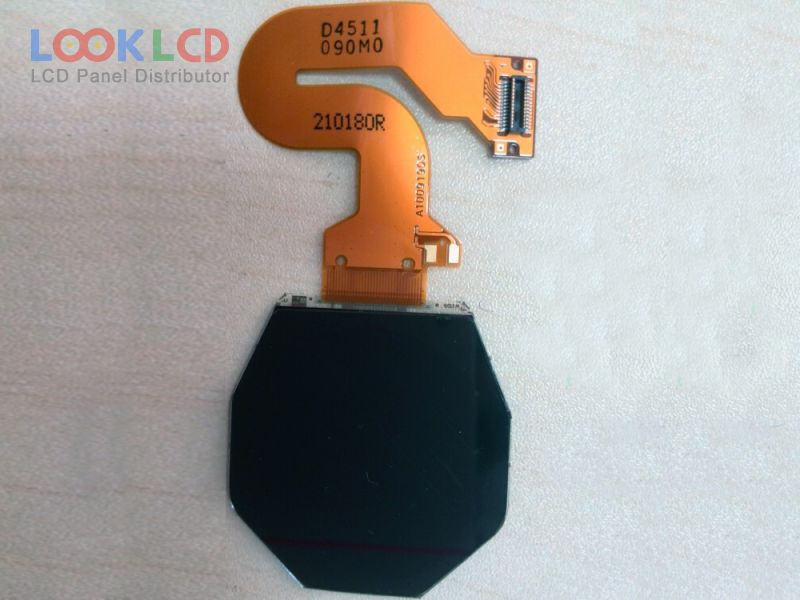

| panel model | LPM012A154A |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 1.2 inch |
| løsning | 218(RGB)×218 |
| visningstilstand | ECB, Normally Black, Reflective |
| aktivt område | 30.411×30.411 mm |
| omrids | 33.811×35.611×1.156 mm |
| overflade | Hard coating (2H) |
| lysstyrke | |
| kontrastforhold | 20:1 (Typ.)(Reflective) |
| vise farver | 8 (1-bit), CIE193123% |
| responstid | 3/6 (Typ.)(Tr/Td) |
| synsvinkel | 60/65/65/60 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 30Hz |
| lampe type | No B/L |
| indgangsspænding | 3.2/4.5/6.6V (Typ.)(VLCD/VDDP/VDDC) |
| Ansøgning | SW |
