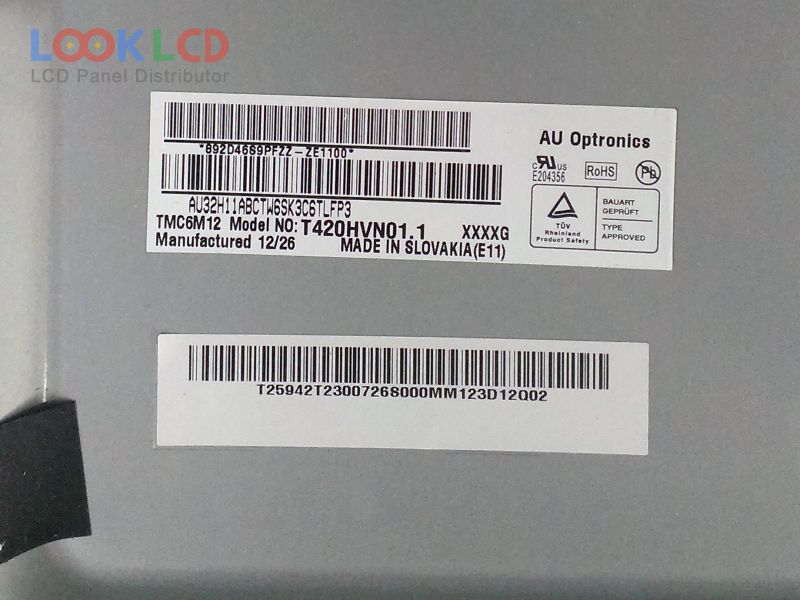

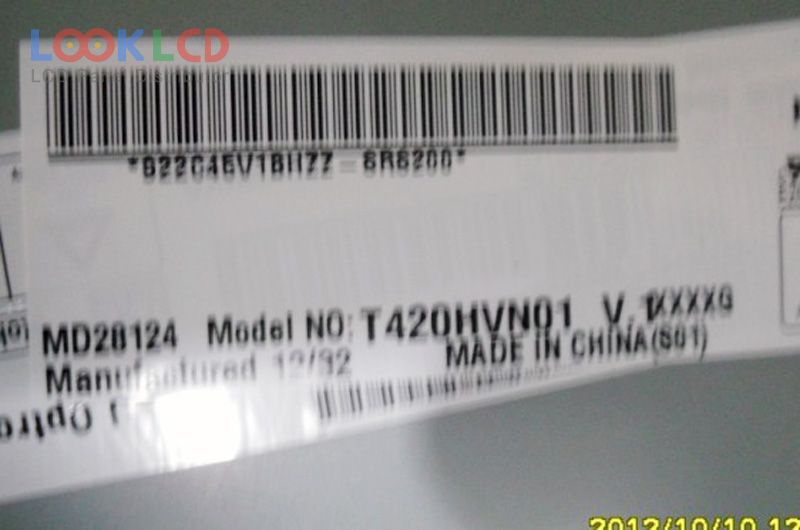

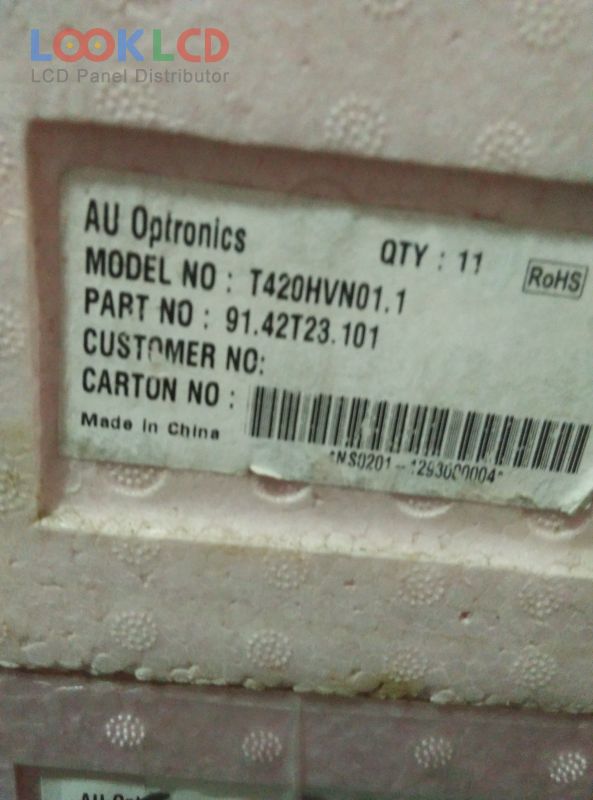

| Varenummer | T420HVN01.1 |
| Mærke | AUO |
| Størrelse | 42 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 3000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | T420HVN01.1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 42 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AMVA3, Normally Black, Transmissive |
| aktivt område | 930.24×523.26 mm |
| omrids | 960.4×560.4 mm |
| overflade | Antiglare (Haze 2%), Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 3000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 6.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| T420HB01 V1 | AUO | 42 | 1920×1080 |
| T420HVN01.1 CELL | AUO | 42 | 1920×1080 |
| T420HVN02.0 | AUO | 42 | 1920×1080 |
| T420HVN04.0 CELL | AUO | 42 | 1920×1080 |
| T420HVN04.5 CELL | AUO | 42 | 1920×1080 |
| T420HVN06.1 | AUO | 42 | 1920×1080 |
| T420HW06 V0 | AUO | 42 | 1920×1080 |
| T420HW07 V5 | AUO | 42 | 1920×1080 |
| T420HW09 V1 | AUO | 42 | 1920×1080 |
| T420HW09 V2 | AUO | 42 | 1920×1080 |
| HV320WXC-201 | BOE | 31.5 | 1366×768 |
| LC320DXJ-SFE1 | LG Display | 31.5 | 1366×768 |
| LC420DUN-SEU2 | LG Display | 42 | 1920×1080 |
| LC470EUF-FFP1 | LG Display | 47 | 1920×1080 |
| LTY460HH-LH2 | Samsung | 46 | 1920×1080 |
| T200XW01 V0 | AUO | 20.0 | 1366×768 |
| T500HVN01.0 | AUO | 50 | 1920×1080 |
| V315B5-L01 | Innolux | 31.5 | 1366×768 |
| V315B5-L02 | Innolux | 31.5 | 1366×768 |
| V500DJ4-QS1 | Innolux | 50 | 3840×2160 |
