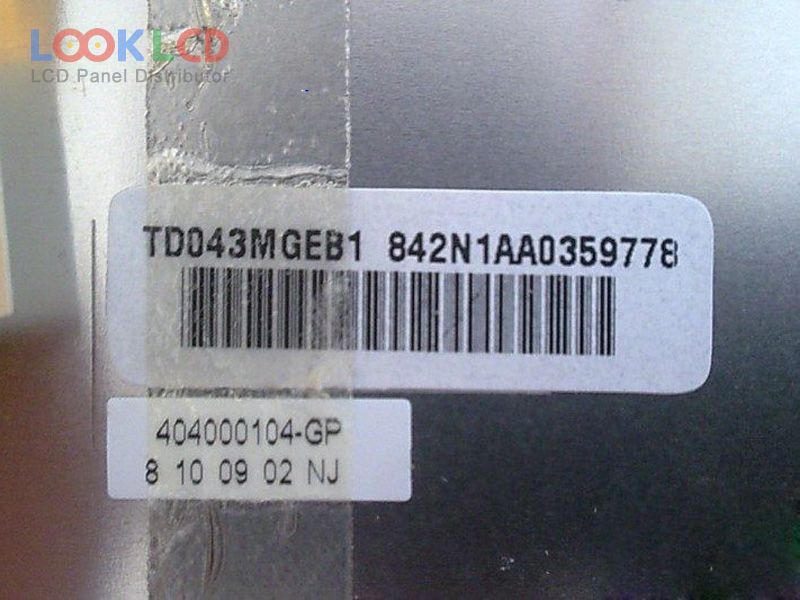

| Varenummer | TD043MGEB1 |
| Mærke | TPO |
| Størrelse | 4.3 |
| Ansøgning | |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TPO |
| panel model | TD043MGEB1 |

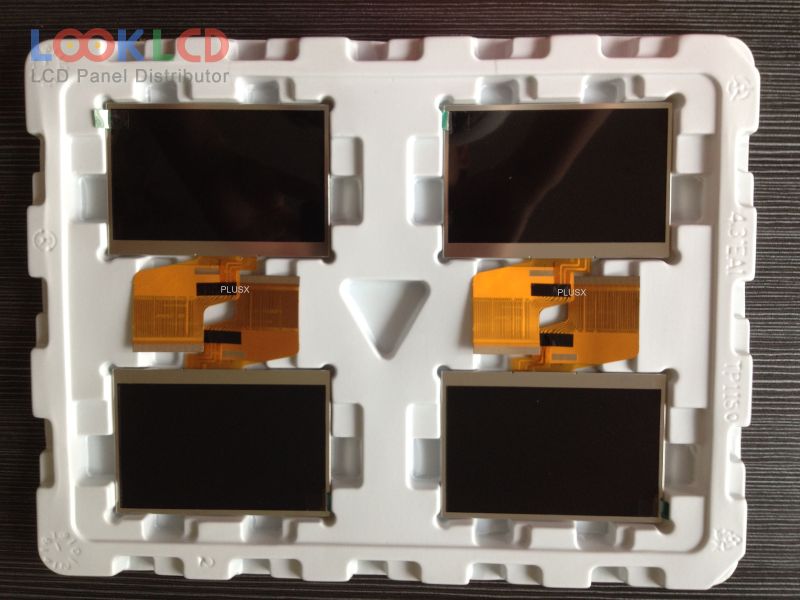

| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 93.6×56.16 mm |
| omrids | 100.6×68.45 mm |
| overflade | |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 30/10 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 8S1PWLED |
| signal interface | Parallel RGB (1 ch, 8-bit), 60 pins |
| indgangsspænding | 3.3/5.0/-5V (Typ.)(VCC/VDDP/VDDN) |
