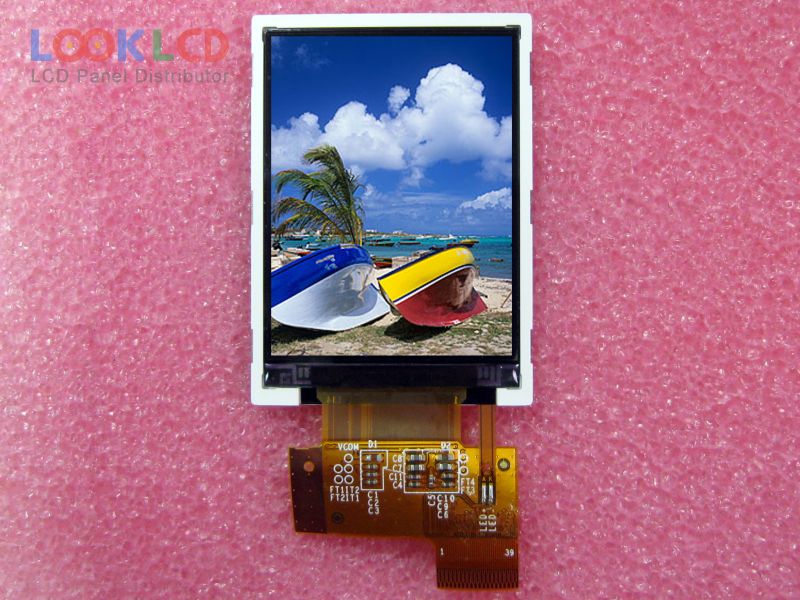

| Varenummer | TM022HDHT1-00 |
| Mærke | Tianma |
| Størrelse | 2.2 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 90 |
| CR | 120:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM022HDHT1-00 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.2 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | ECB, Normally White, Transflective |
| aktivt område | 33.84×45.12 mm |
| omrids | 40.6×56.6 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 90 cd/m² (Typ.) |
| kontrastforhold | 120:1 (Typ.)(Transmissive) |
| vise farver | 262K (6-bit), CIE193130% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 40/45/48/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S1PWLEDWithout Driver |

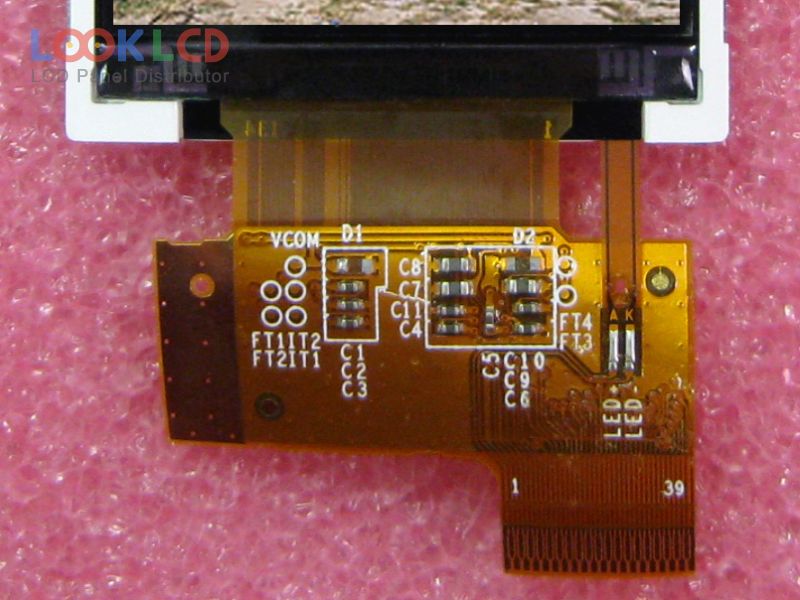

| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| indgangsspænding | 2.8V (Typ.)(VDD) |
| Ansøgning | MPH |
