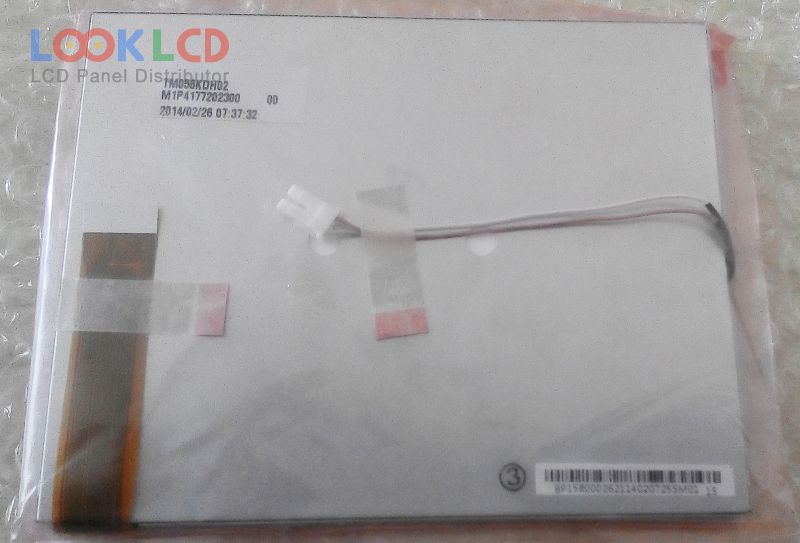

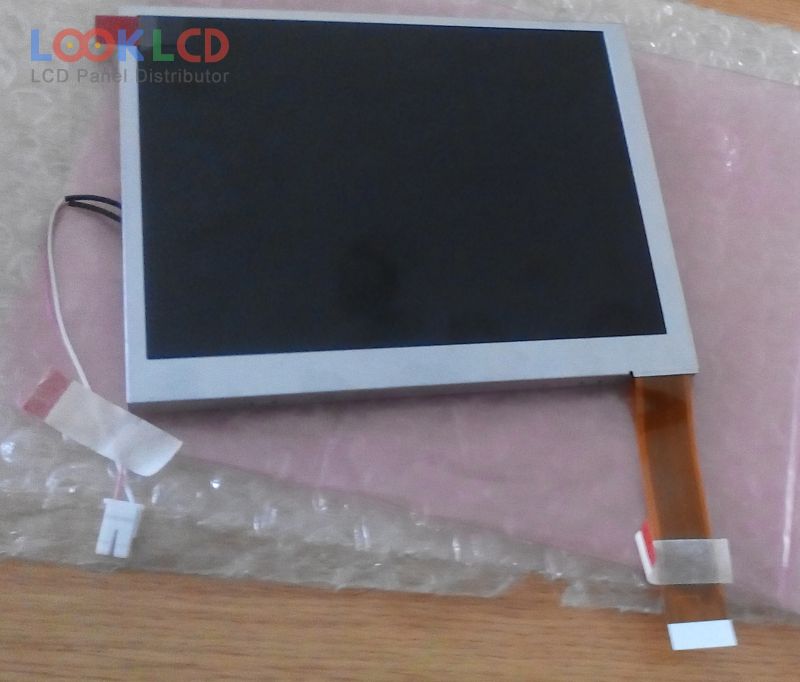

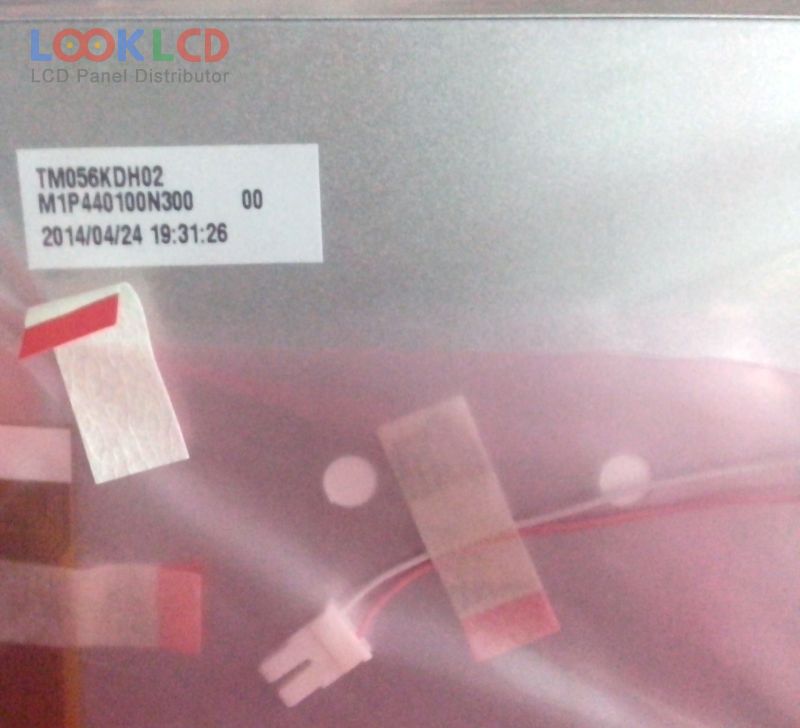

| Varenummer | TM056KDH02 |
| Mærke | Tianma |
| Størrelse | 5.6 |
| Ansøgning | VDP |
| Løsning | 320×234 |
| Sammensætning | LCM |
| Lysstyrke | 330 |
| CR | 300:1 |
| Farver | Full color |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | TIANMA |
| panel model | TM056KDH02 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.6 inch |
| løsning | 320(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 113.28×84.708 mm |
| omrids | 126.5×100 mm |
| overflade | Antiglare |
| lysstyrke | 330 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | Full color , CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2S7PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| indgangsspænding | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | VDP |
