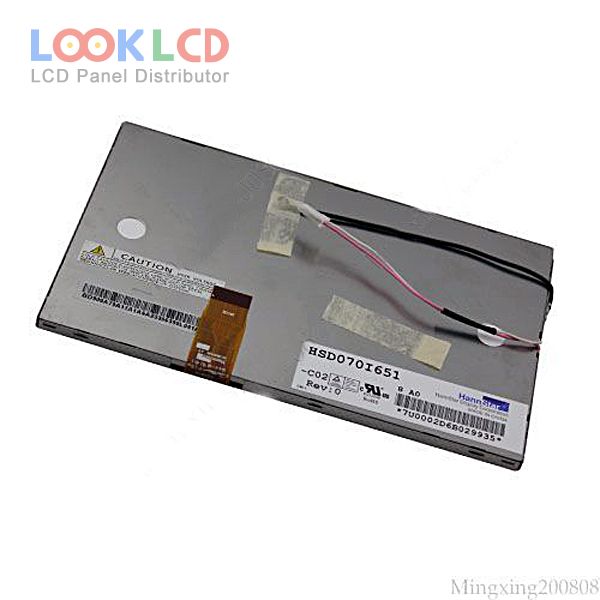

| Varenummer | HSD070I651-C02 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | VDP |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | HannStar |
| panel model | HSD070I651-C02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×86.58 mm |
| omrids | 164.9×100 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| indgangsspænding | 3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Ansøgning | VDP |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| LB065W01-B11B | LG Display | 6.5 | 400×234 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
