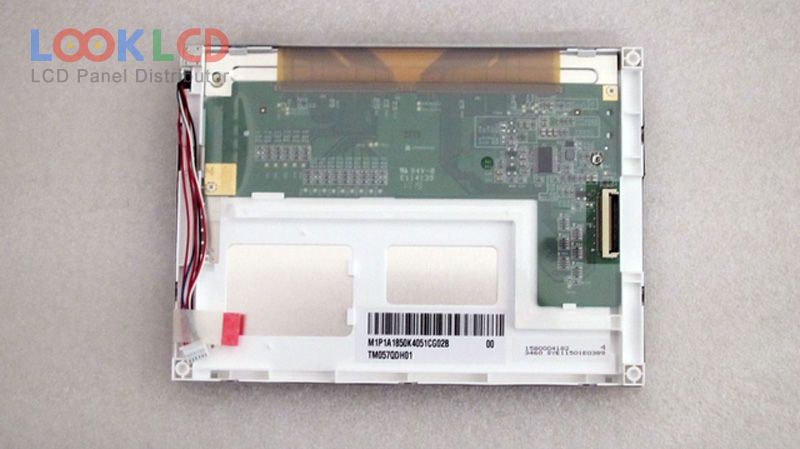

| Varenummer | TM057QDH01 |
| Mærke | Tianma |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM057QDH01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×104.6×12.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
