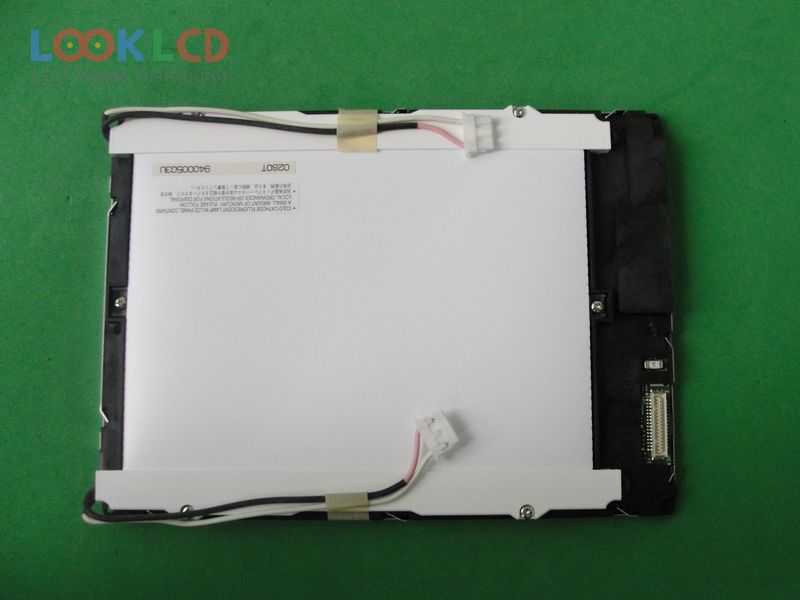

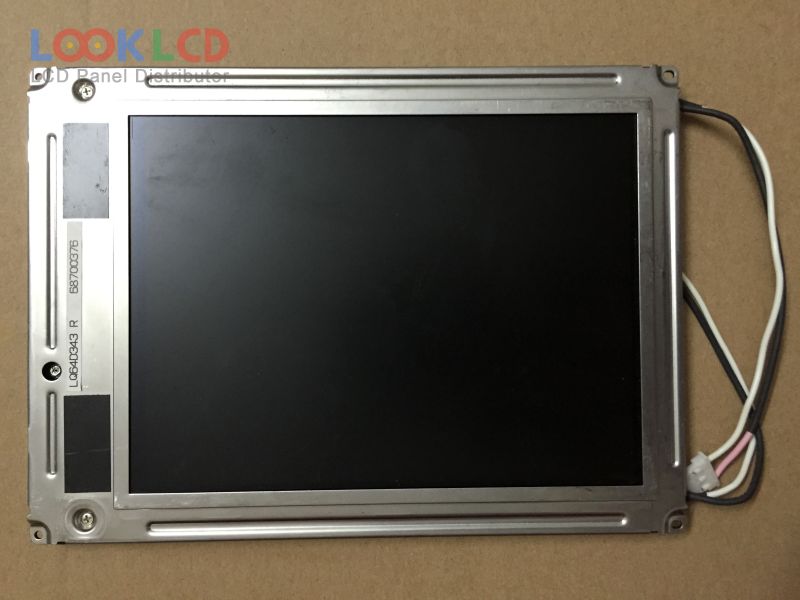

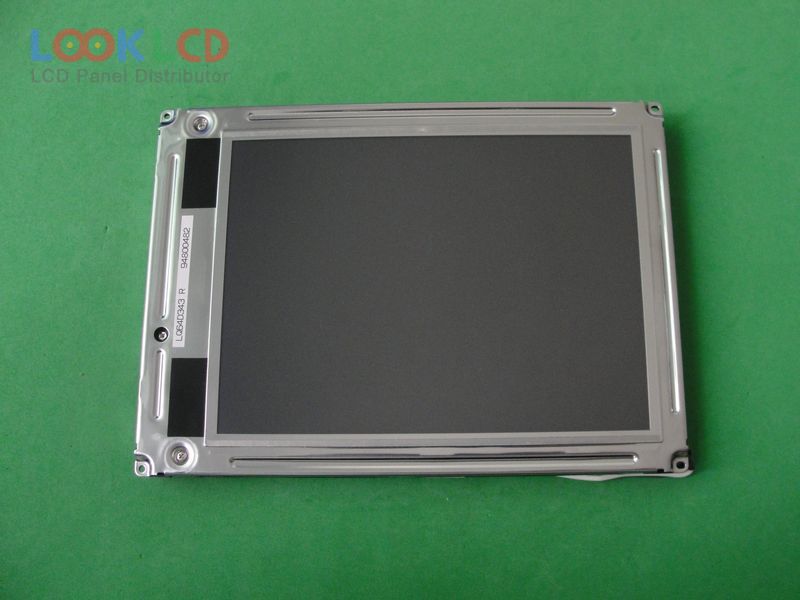

| Varenummer | LQ64D343R |
| Mærke | SHARP |
| Størrelse | 6.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ64D343R |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 130.6×97 mm |
| omrids | 175×126.5 mm |
| overflade | Antiglare (Haze 28%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 20/40 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/40/70 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| indgangsspænding | 5.0V (Typ.)(VCC) |
| Ansøgning | IA |
