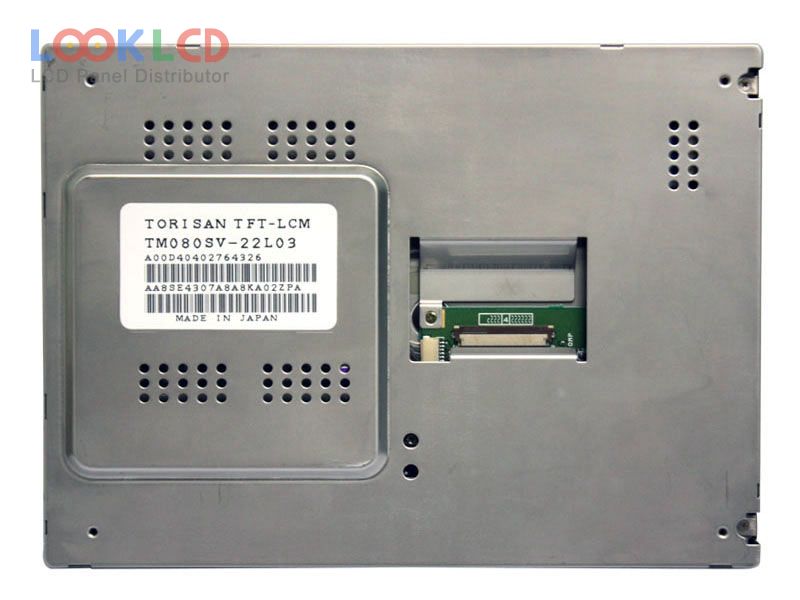

| Varenummer | TM080SV-22L03 |
| Mærke | SANYO |
| Størrelse | 8.0 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | TORISAN |
| panel model | TM080SV-22L03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 163.2×122.4 mm |
| omrids | 187×142 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | 65/65/35/45 (Min.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Ansøgning | IA |
| A080XN01 V1 | AUO | 8.0 | 1024×768 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| N080XCG-L21 | Innolux | 8.0 | 1024×768 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
| TM080SV-22L03 | SANYO | 8.0 | 800×600 |
| TM080XPH01 | Tianma | 8.0 | 1280×768 |
| AG-12864CYIQY-14H-A(R) | AMPIRE | 2.7 | 128×64 |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G104SN03 V0 | AUO | 10.4 | 800×600 |
| G321DX5R1AC | SII | 6.3 | 320×200 |
| LB121S03-TL01 | LG Display | 12.1 | 800×600 |
| LQ104V1DG72 | SHARP | 10.4 | 640×480 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| MD640.400-54 | FINLUX | 9.1 | 640×400 |
| PD104VT3 | E Ink | 10.4 | 640×480 |
| UG-6028GDEBF02 | WiseChip | 1.7 | 160×128 |
