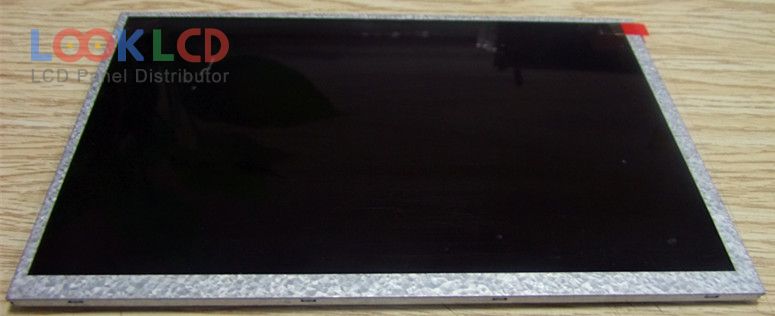

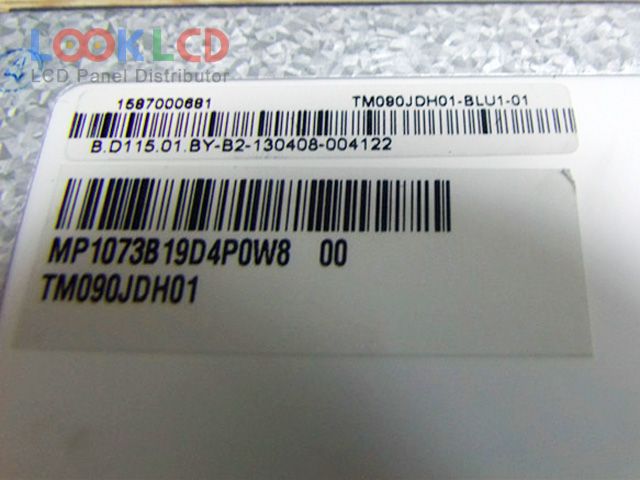

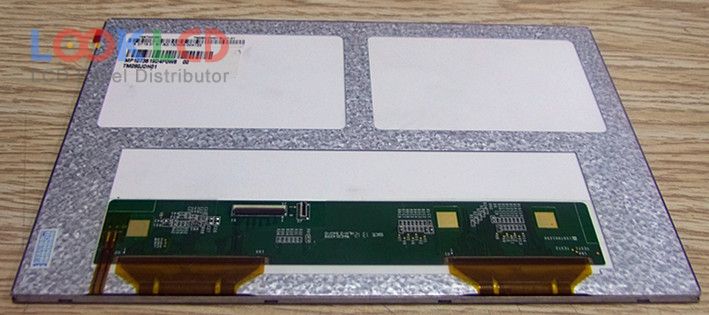

| Varenummer | TM090JDH01 |
| Mærke | Tianma |
| Størrelse | 9.0 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | TIANMA |
| panel model | TM090JDH01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 193.92×121.2 mm |
| omrids | 206.76×135.06×4.8 mm |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S12PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 51 pins |
| indgangsspænding | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | PAD |
