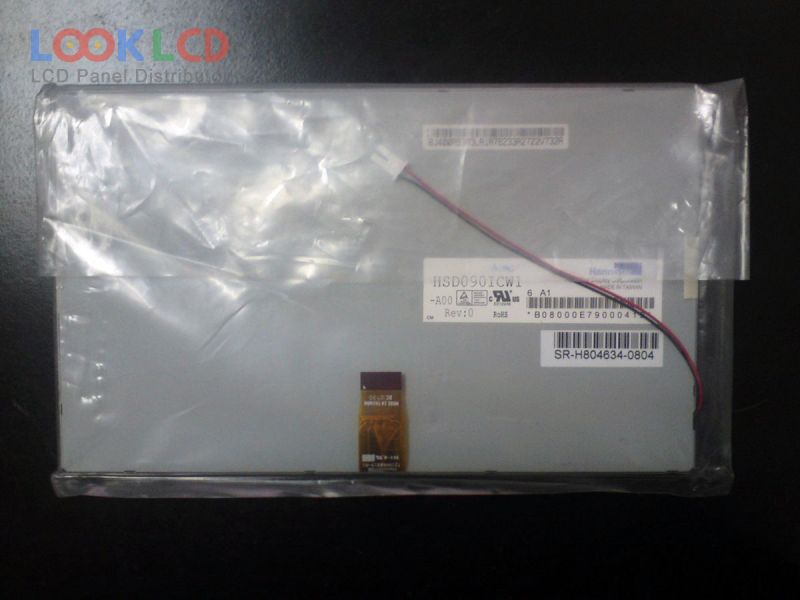

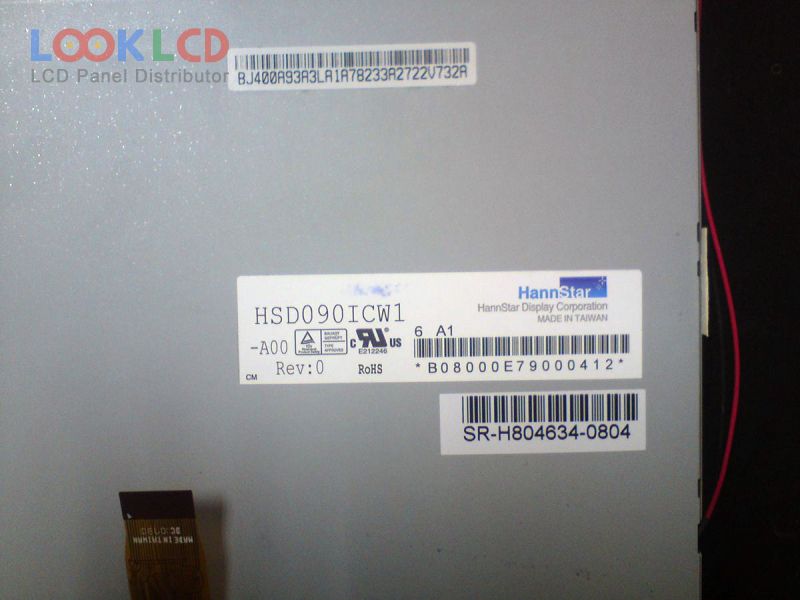

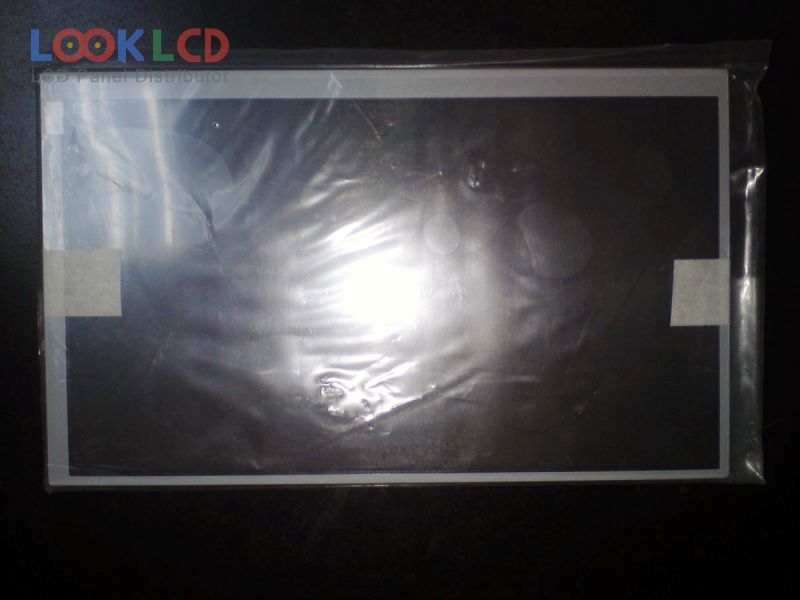

| Varenummer | HSD090ICW1-A00 |
| Mærke | HannStar |
| Størrelse | 9.0 |
| Ansøgning | DPF |
| Løsning | 640×234 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | HannStar |
| panel model | HSD090ICW1-A00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 640(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 197.76×111.735 mm |
| omrids | 210.7×126.4×4.25 mm |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | , CIE193145% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S8PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| indgangsspænding | 3.3/5/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | DPF |
