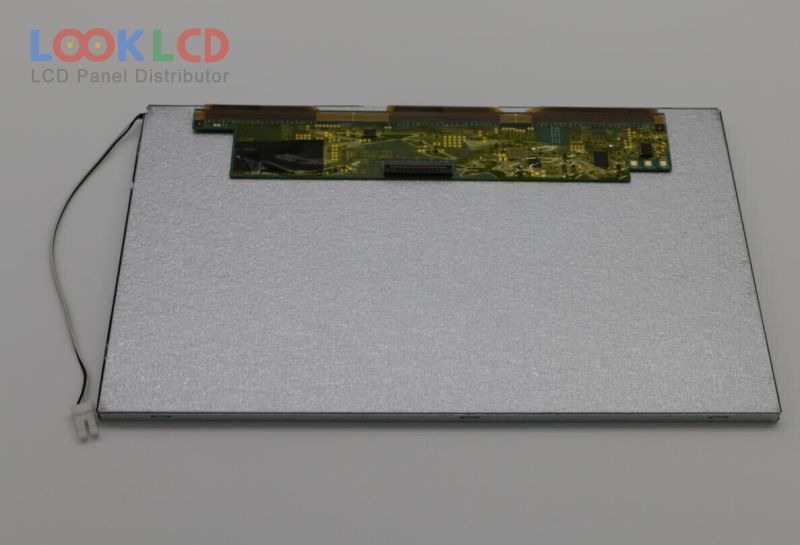

| Varenummer | YX090DKN01.0 |
| Mærke | SEBO |
| Størrelse | 9.0 |
| Ansøgning | CNS |
| Løsning | 1280×720 |
| Sammensætning | LCM |
| Lysstyrke | 800 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SEBO |
| panel model | YX090DKN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 1280(RGB)×720 , WXGA |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 198.72×111.78 mm |
| omrids | 210.7×126.8 mm |
| overflade | Antiglare |
| lysstyrke | 800 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | TBD |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDD/VDDA) |
| Ansøgning | CNS |
