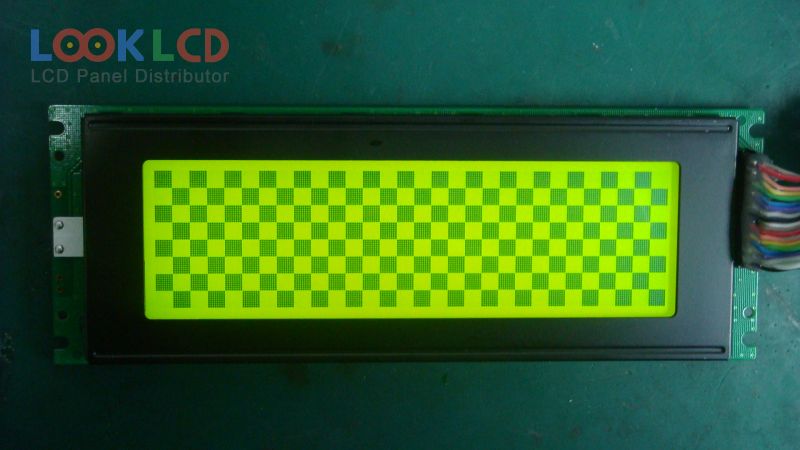

| Varenummer | TM24064BBCWVBYD |
| Mærke | Tianma |
| Størrelse | 5.2 |
| Ansøgning | IA |
| Løsning | 240×64 |
| Sammensætning | LCM |
| Lysstyrke | 25 |
| CR | 3:1 |
| Farver | Monochrome |
| Baggrundsbelysning | YG-LED |
| Interface | CPU |
| panel mærke | TIANMA |
| panel model | TM24064BBCWVBYD |
| paneltype | STN-LCD , LCM |
| panelstørrelse | 5.2 inch |
| løsning | 240×64 |
| visningstilstand | STN, Yellow/Green (Positive), Transflective |
| aktivt område | 127.16×33.88 mm |
| omrids | 180×65 mm |
| overflade | |
| lysstyrke | 25 cd/m² (Typ.) |
| kontrastforhold | 3:1 (Typ.)(Transmissive) |
| vise farver | Monochrome |
| responstid | 120/200 (Typ.)(Tr/Td) |
| synsvinkel | 30/35/45/35 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | YG-LEDWithout Driver |
| signal interface | 8-bit parallel, 22 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
