| Varenummer | TX14D22VM1BAA |
| Mærke | KOE |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HITACHI |

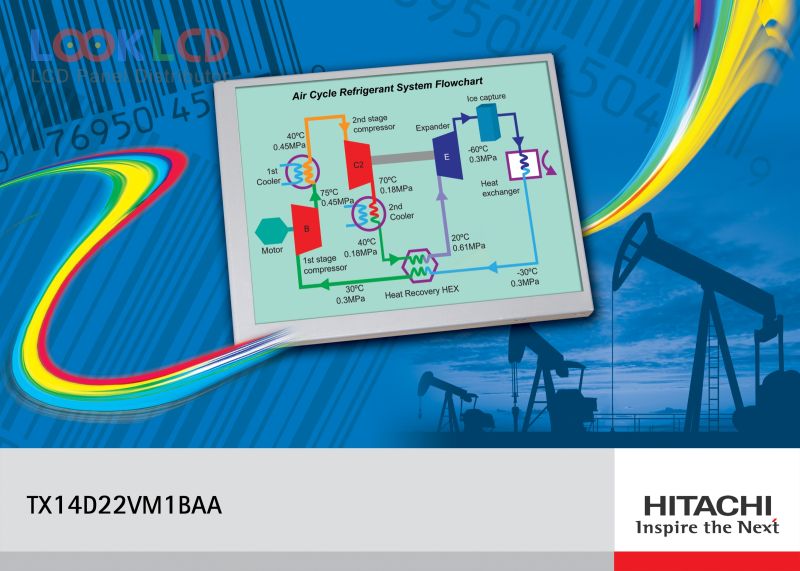

| panel model | TX14D22VM1BAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 131×102.2×7.1 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/60 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S5PWLEDWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | IA |
