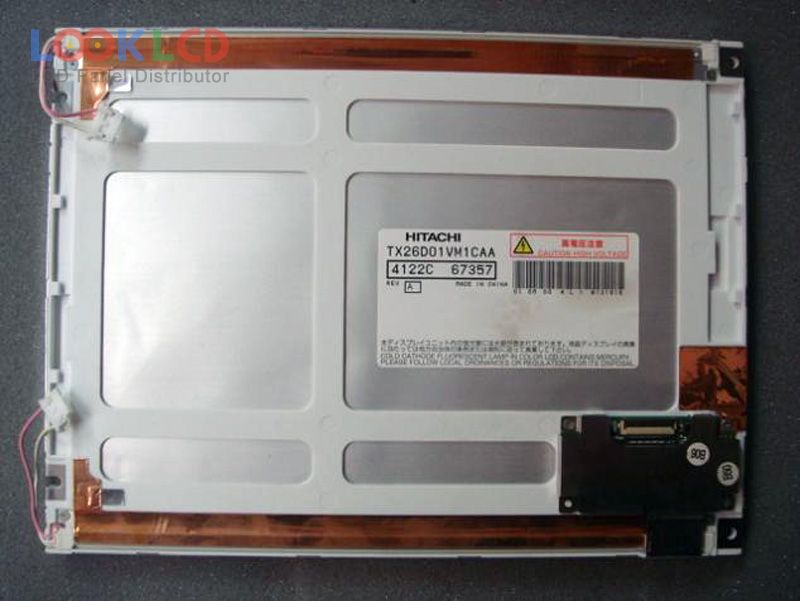

| Varenummer | TX26D01VM1CAA |
| Mærke | KOE |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | HITACHI |
| panel model | TX26D01VM1CAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×181.6×12.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30/20 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 32 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| rohs: | |
| Ansøgning | IA |
