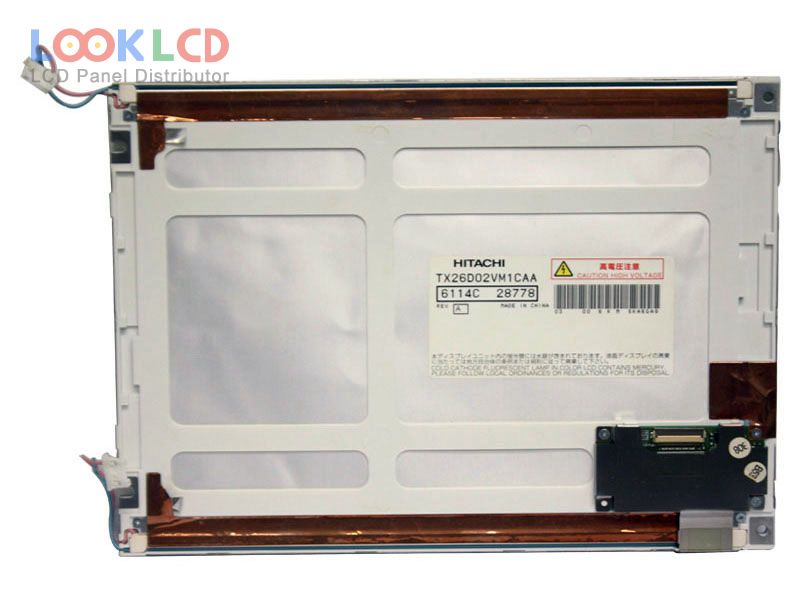

| Varenummer | TX26D02VM1CAA |
| Mærke | KOE |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | HITACHI |
| panel model | TX26D02VM1CAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×181.6×12.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30/20 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 32 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| rohs: | |
| Ansøgning | IA |
| DLC1040ABG-2 | Other | 10.4 | 800×600 |
| G104AGE-L02 | Innolux | 10.4 | 800×600 |
| LB104S01-TL01 | LG Display | 10.4 | 800×600 |
| LQ10W03A | SHARP | 10.4 | 1024×600 |
| LTA104D183F | TOSHIBA | 10.4 | 800×600 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| TX26D01VM1CAA | KOE | 10.4 | 640×480 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
| TX26D06VM1CAA | KOE | 10.4 | 640×480 |
| C555001 | SII | 5.7 | 320×240 |
| CLAA150XP06CW | CPT | 15.0 | 1024×768 |
| DMF-50773NF-FW | Kyocera | 5.4 | 240×128 |
| ELT256.120.90 | Lumineq | 10.0 | 256×120 |
| LQ150X1LX95 | SHARP | 15.0 | 1024×768 |
| LQ9D001 | SHARP | 8.4 | 640×480 |
| LTA057A340F | TOSHIBA | 5.7 | 320×240 |
| NL10276BC16-01 | NLT | 8.4 | 1024×768 |
| TM150TDS50 | Tianma | 15.0 | 1024×768 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
