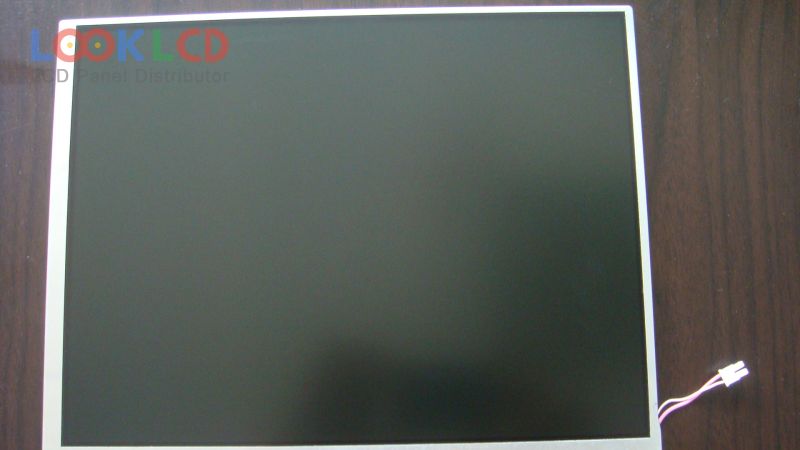

| Varenummer | TX31D67VC1CAA |
| Mærke | KOE |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |

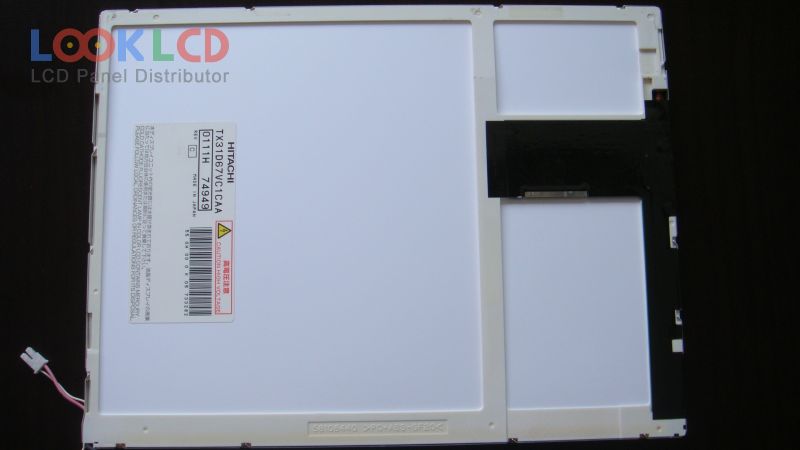

| panel mærke | HITACHI |
| panel model | TX31D67VC1CAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 263×198×7.1 mm |
| overflade | Antiglare |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 40/20 (Typ.)(Tr/Td) |
| synsvinkel | 35/35/5/35 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
| Ansøgning | NBPC |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| AA121XL01 | Mitsubishi | 12.1 | 1024×768 |
| B121EW03 V7 | AUO | 12.1 | 1280×800 |
| LQ121S1LG79 | SHARP | 12.1 | 800×600 |
| LQ12S41 | SHARP | 12.1 | 800×600 |
| LTD121EWVB | TOSHIBA | 12.1 | 1280×800 |
| LTM12C289 | TOSHIBA | 12.1 | 800×600 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| TX31D67VC1CAA | KOE | 12.1 | 1024×768 |
| B154SW01 V9 | AUO | 15.4 | 1680×1050 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LP140WD1-TLD2 | LG Display | 14.0 | 1600×900 |
| LP141WP1-TLA2 | LG Display | 14.1 | 1440×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTM09C362F | TOSHIBA | 8.9 | 1024×600 |
| LTN133HL01-301 | Samsung | 13.3 | 1920×1080 |
| LTN141BT01-004 | Samsung | 14.1 | 1440×900 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
