| Varenummer | TX38D14VC0CAA |
| Mærke | KOE |
| Størrelse | 15.0 |
| Ansøgning | DMPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | HITACHI |
| panel model | TX38D14VC0CAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 350×265 mm |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 25/25 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥20)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |

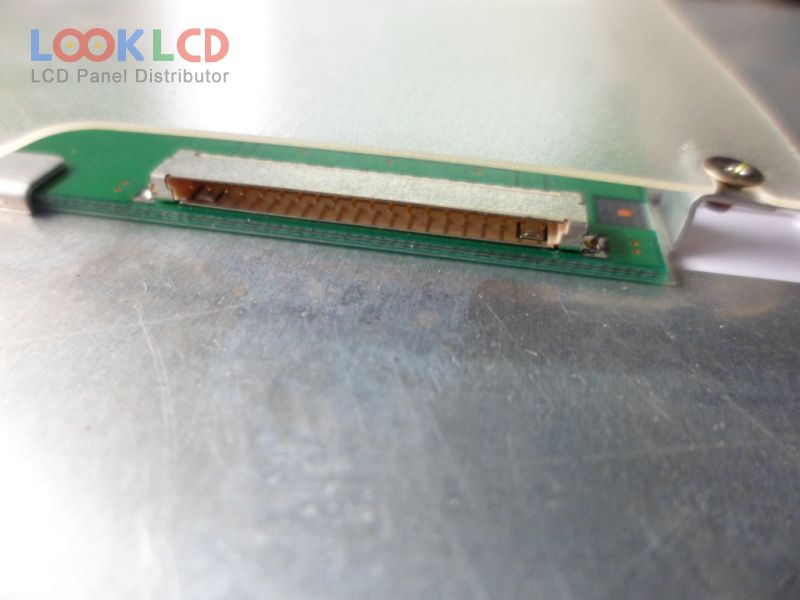

| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
