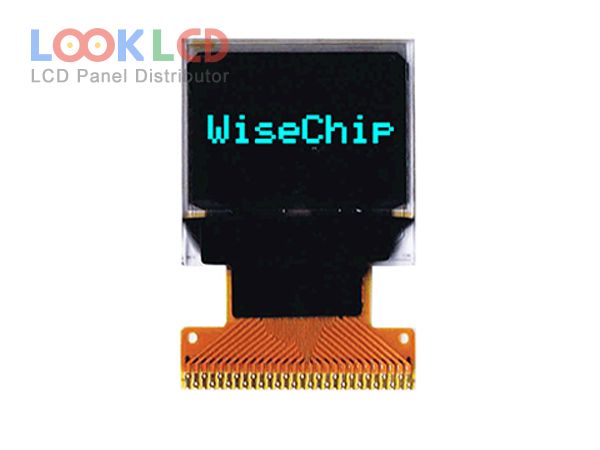

| Varenummer | UG-6448HLBEG03 |
| Mærke | WiseChip |
| Størrelse | 0.66 |
| Ansøgning | |
| Løsning | 64×48 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 10000:1 |
| Farver | Mono(Blue) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | WiseChip |
| panel model | UG-6448HLBEG03 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.66 inch |
| løsning | 64×48 |
| aktivt område | 13.42×10.06 mm |
| omrids | 18.46×18.1×1.55 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | Mono(Blue) (1-bit) |
| synsvinkel | |
| driver ic | COG Built-in SSD1306 |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| indgangsspænding | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: |
