| Varenummer | V260B1-L02 |
| Mærke | Innolux |
| Størrelse | 26.0 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | RSDS |
| panel mærke | CMO |
| panel model | V260B1-L02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 26.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 575.769×323.712 mm |
| omrids | 626×373 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193172% |
| responstid | 3/5 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |

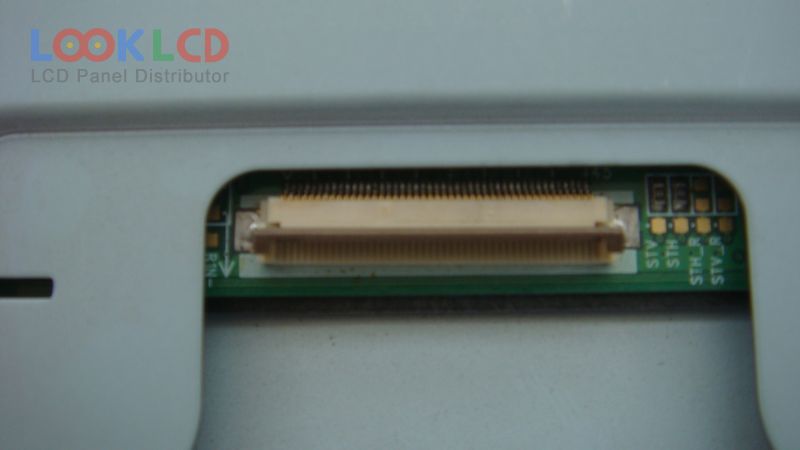

| signal interface | RSDS (1 Channel), 45 pins |
| indgangsspænding | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| Ansøgning | LCTV |
