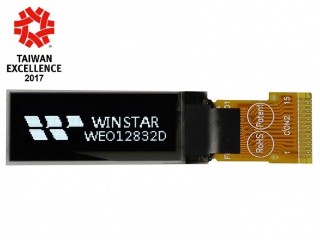

| Varenummer | WEO012832DW |
| Mærke | Winstar |
| Størrelse | 0.91 |
| Ansøgning | Wearable Instruments |
| Løsning | 128×32 |
| Sammensætning | PM-OLED , OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | 4-wire |
| mærke | Winstar |
| diagonal størrelse | 0.91 inch |
| pixel format | 128×32 145PPI |
| aktivt område | 22.38(H)×5.584(V) mm |
| bezel område | 24.384(H)×7.58(V) mm |
| visningsretning | Symmetry |
| synsvinkel | - |
| støtte farve | Mono(White) |
| vægt | - |
| billedhastighed | - |
| d-ic detalje | COG Built-in SSD1306BZ |
| interface type | 4-wire SPI , 15 pins FPC |
| Strømforsyning | 3.0V (Typ.) |
| model | WEO012832DW |
| type | PM-OLED , OLED |
| konfiguration | Rectangle |
| omrids dim. | 30(H)×11.5(V) ×1.75(D) mm |
| behandling | - |
| responstid | - |
| driftstilstand | - |
| lyskilde | self |
| designet til | Wearable Instruments & Meters |
| berøringspanel | Without |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0068-W-E | Other | 0.91 | 128×32 |
| OEL9M0084-B-E | Other | 0.91 | 128×32 |
| OEL9M0084-G-E | Other | 0.91 | 128×32 |
| OEL9M0084-R-E | Other | 0.91 | 128×32 |
| OEL9M0084-W-E | Other | 0.91 | 128×32 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| UG-2832HLBEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832HSWEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832KLBEG04 | WiseChip | 0.91 | 128×32 |
