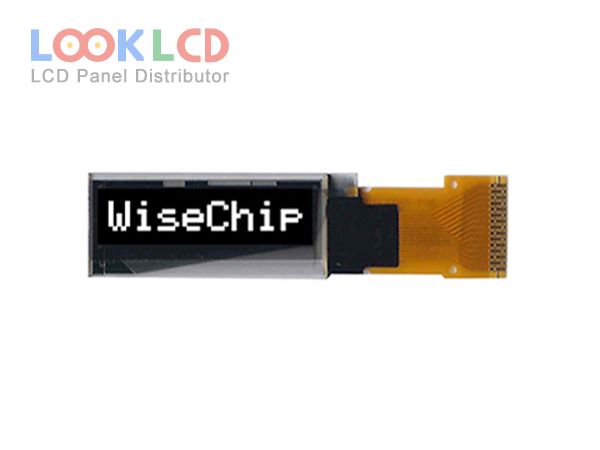

| Varenummer | UG-2832HSWEG04 |
| Mærke | WiseChip |
| Størrelse | 0.91 |
| Ansøgning | SB |
| Løsning | 128×32 |
| Sammensætning | OLED |
| Lysstyrke | 150 |
| CR | 2000:1 |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | SPI |
| panel mærke | Univision |
| panel model | UG-2832HSWEG04 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.91 inch |
| løsning | 128×32 |
| aktivt område | 22.384×5.584 mm |
| omrids | 30×11.5×1.55 mm |
| overflade | |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Typ.) |
| vise farver | Mono(White) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COG Built-in SSD1306 |
| signal interface | 4-wire SPI, 15 pins |
| indgangsspænding | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| Ansøgning | SB |
| EPW1802AA | Futaba | 1.8 | 160×32 |
| ES063TC1 | E Ink | 6.3 | 200×1040 |
| NVK16BSC001G-C-0000 | Neoview Kolon | 1.7 | 80×168 |
| OEL9M0068-B-E | Other | 0.91 | 128×32 |
| OEL9M0068-G-E | Other | 0.91 | 128×32 |
| OEL9M0068-R-E | Other | 0.91 | 128×32 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| RGC05072032WR000 | RiTdisplay | 0.48 | 72×32 |
| UG-2832HSWEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832KLBEG04 | WiseChip | 0.91 | 128×32 |
