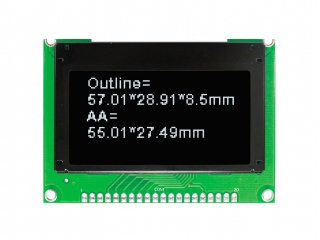

| Varenummer | WEO012864JW |
| Mærke | Winstar |
| Størrelse | 2.4 |
| Ansøgning | Handheld & PDA I |
| Løsning | 128×64 |
| Sammensætning | PM-OLED, OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | 8-bit |
| panel mærke | Winstar |
| panel model | WEO012864JW |
| panelstørrelse | 2.4" |
| paneltype | PM-OLED, OLED |
| løsning | 128×64, 59PPI |
| pixel format | Rectangle |
| udstillingsområde | 55.01(W)×27.49(H) mm |
| bezel åbning | 57.01(W)×29.49(H) mm |
| konturstørrelse | 75(W)×52(H) ×8.5(D) mm |
| overflade | - |
| synsvinkel | - |
| visningstilstand | - |
| bedste udsigt på | Symmetry |
| responstid | - |
| vise farver | Mono(White) |
| lampe type | self |
| frekvens | - |
| berøringsskærm | Without |
| driver ic | COG Built-in SSD1309ZC |
| panelvægt | - |
| Ansøgning | Handheld & PDA Instruments & Meters |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 20 pins Pad |
| indgangsspænding | 3.0V (Typ.) |
