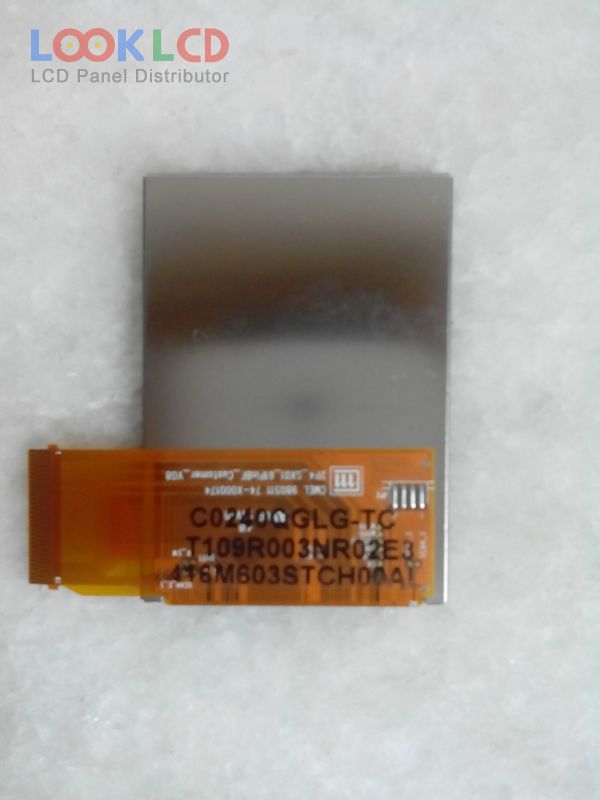

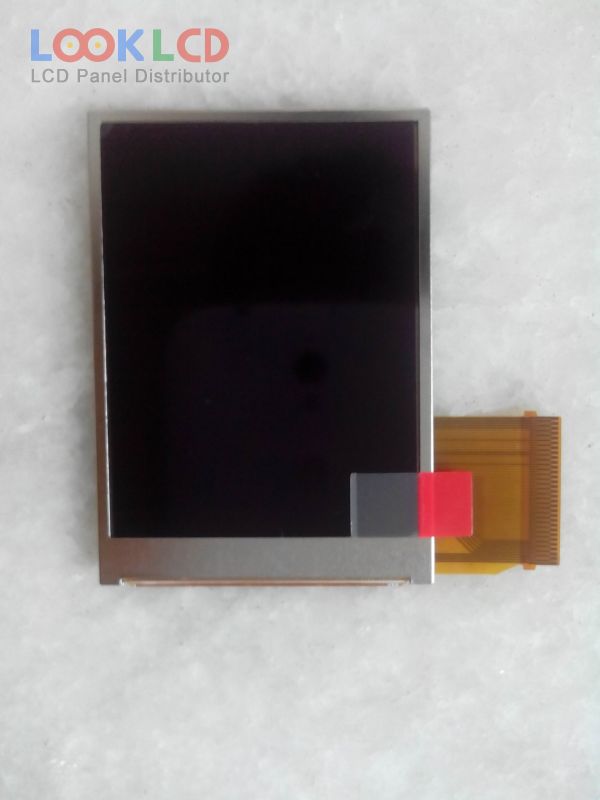

| Varenummer | C0240QGLG-T |
| Mærke | CMEL |
| Størrelse | 2.4 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | OLED |
| Lysstyrke | 200 |
| CR | 10000:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | self |
| Interface | CPU/RGB/SPI |
| panel mærke | CMEL |
| panel model | C0240QGLG-T |
| paneltype | AM-OLED , OLED |
| panelstørrelse | 2.4 inch |
| løsning | 240(RGB)×320 , QVGA |
| aktivt område | 36.72×48.96 mm |
| omrids | 40.72×57.32 mm |
| overflade | |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | 65K/262K , CIE193173% |
| synsvinkel | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| frekvens | 60Hz |
| driver ic | Built-in S6E63D6 |
| signal interface | 8/9/16/18-bit 6800/8080 parallel, 6/16/18-bit RGB, SPI, 61 pins |
| indgangsspænding | 2.8/1.8V (Typ.)(VCI/VDD3) |
| Ansøgning | MPH |
| 24QVF1J | SII | 2.4 | 240×320 |
| 24QVF2H | SII | 2.4 | 240×320 |
| A024CN02 VL | AUO | 2.4 | 480×234 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| AMCE002 | Samsung | 2.4 | 240×320 |
| C0240QGLG-T | CMEL | 2.4 | 240×320 |
| DLC0240ACOG-3 | Other | 2.4 | 240×320 |
| LQ024B7UD01 | SHARP | 2.4 | 160×240 |
| TD024THEB5 | TPO | 2.4 | 480×240 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
| AMEJ006 | Samsung | 2.8 | 240×400 |
| DX12D100VM0EAA | JDI | 4.7 | 720×1280 |
| H361VL01 V4 | AUO | 3.6 | 480×800 |
| H497TLB01.4 | AUO | 5.0 | 720×1280 |
| LH400WS2-SD03 | LG Display | 4.0 | 640×1136 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LS030B3UX01D | SHARP | 3.0 | 240×400 |
| LS040T3SW01 | SHARP | 4.0 | 540×960 |
| TD028STEB1 | TPO | 2.8 | 240×320 |
| TM022HDHT1-00 | Tianma | 2.2 | 240×320 |
