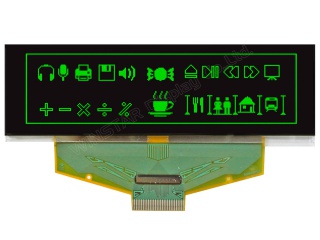

| Varenummer | WEX025664BG |
| Mærke | Winstar |
| Størrelse | 3.1 |
| Ansøgning | Automotive Electroni |
| Løsning | 256×64 |
| Sammensætning | PM-OLED , OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(Green) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | Winstar |
| panelstørrelse | 3.1" |
| løsning | 256×64, 84PPI |
| udstillingsområde | 76.778(W)×19.178(H) mm |
| konturstørrelse | 88(W)×27.8(H) mm |
| synsvinkel | - |
| bedste udsigt på | Symmetry |
| vise farver | Mono(Green) |
| frekvens | - |
| driver ic | TAB Built-in SSD1322UR1 |
| panelvægt | - |
| signal interface | CPU/SPI , 30 pins FPC |
| indgangsspænding | 3.0V (Typ.) |
| panel model | WEX025664BG |
| paneltype | PM-OLED , OLED |
| pixel format | Rectangle |
| bezel åbning | 78.78(W)×21.18(H) mm |
| overflade | - |
| visningstilstand | - |
| responstid | - |
| lampe type | self |
| berøringsskærm | Without |
| Ansøgning | Automotive Electronics Handheld & PDA Healthcare Instruments & Meters |
