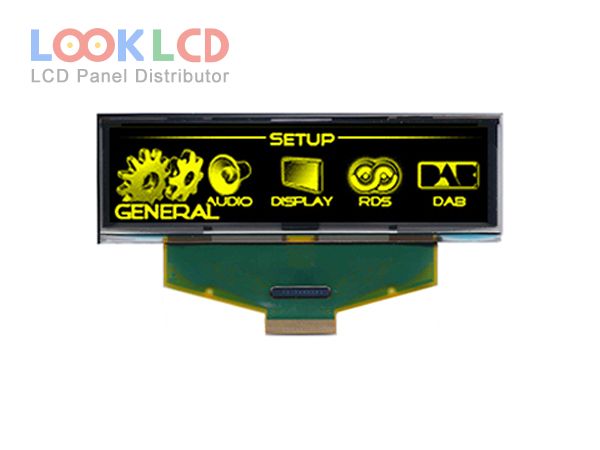

| Varenummer | UG-5664ASYEF01 |
| Mærke | WiseChip |
| Størrelse | 3.1 |
| Ansøgning | IA |
| Løsning | 256×64 |
| Sammensætning | OLED |
| Lysstyrke | 80 |
| CR | 2000:1 |
| Farver | Grayscale(Y) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | Univision |
| panel model | UG-5664ASYEF01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 3.1 inch |
| løsning | 256×64 |
| aktivt område | 76.78×19.18 mm |
| omrids | 88×27.8×2.1 mm |
| overflade | |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Typ.) |
| vise farver | Grayscale(Y) (4-bit) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COF Built-in SSD1322 |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| indgangsspænding | 2.8/12V (Typ.)(VCI/VCC) |
| rohs: | |
| Ansøgning | IA |
