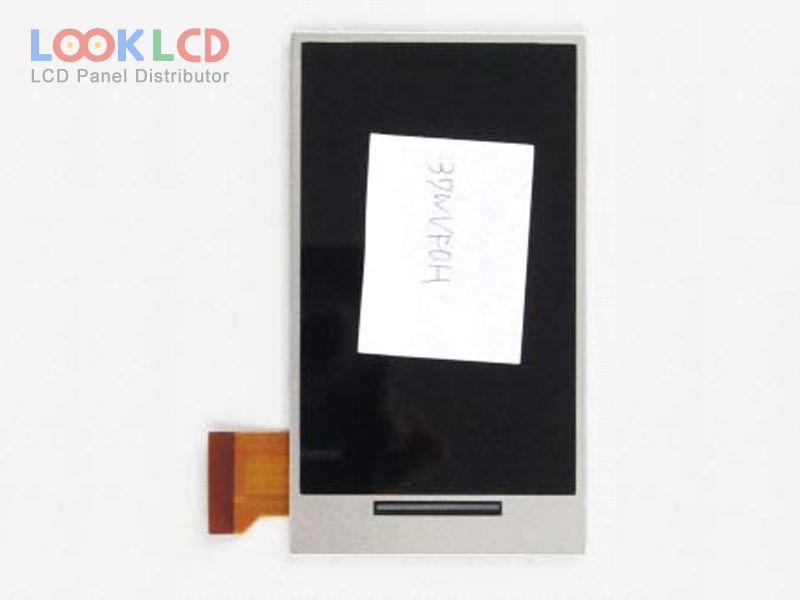

| Varenummer | 37WVF0H |
| Mærke | SII |
| Størrelse | 3.7 |
| Ansøgning | PND |
| Løsning | 480×800 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SII |
| panel model | 37WVF0H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.7 inch |
| løsning | 480(RGB)×800 , WVGA |
| visningstilstand | FFS, Normally Black, Transmissive |
| aktivt område | 48.24×80.4 mm |
| omrids | 53.84×95.1 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.2M (6-bit + Dithering), CIE193169% |
| responstid | |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 6S1PWLED |
| signal interface | Parallel RGB (1 ch, 6/8-bit) + SPI, 61 pins |
| Ansøgning | PND |
