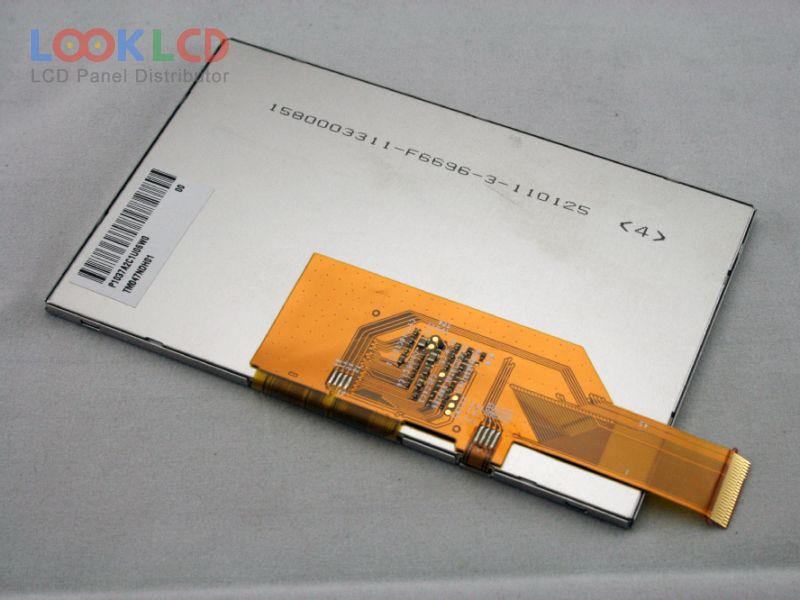

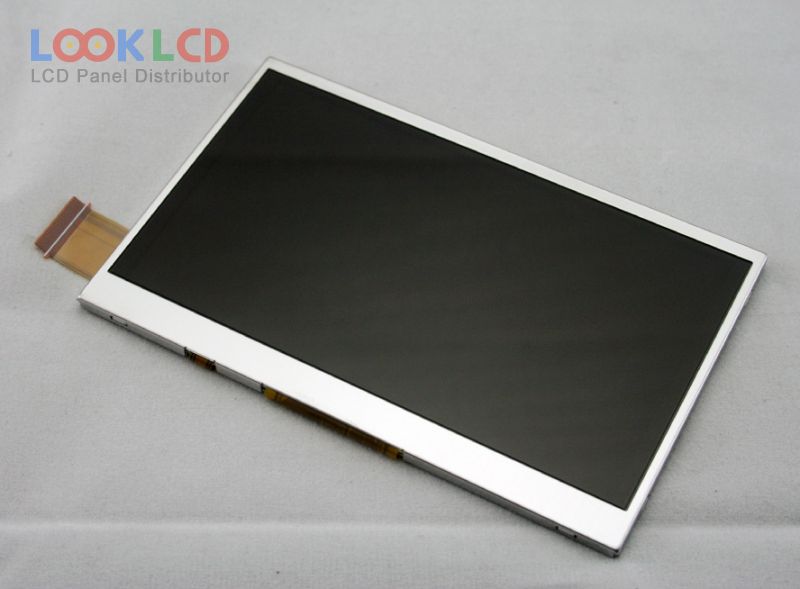

| Varenummer | TM047NDH01 |
| Mærke | Tianma |
| Størrelse | 4.7 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM047NDH01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.7 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 103.68×58.752 mm |
| omrids | 114.3×72.5 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S1P+6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 45 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
| 990000475 | TPO | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
