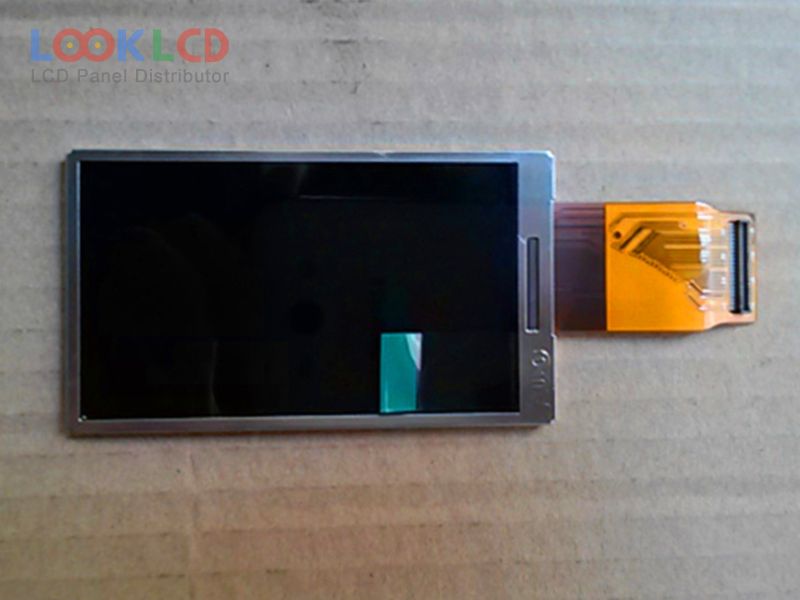

| Varenummer | A030FL01 V2 |
| Mærke | AUO |
| Størrelse | 3.0 |
| Ansøgning | POTV |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A030FL01 V2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | ATR-MVA, Normally Black, Transflective |
| aktivt område | 65.52×37.128 mm |
| omrids | 76.12×43.7 mm |
| overflade | |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.)(Transmissive) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S1PWLED |

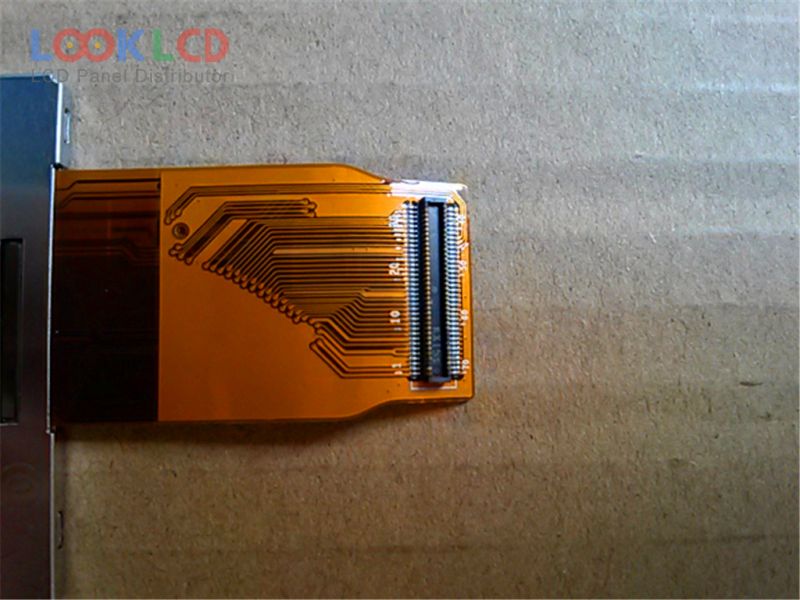

| signal interface | Parallel RGB (1 ch, 8-bit) + SPI, 70 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Ansøgning | POTV |
| 990001086 | Innolux | 3.0 | |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| A030FL01 V2 | AUO | 3.0 | 480×272 |
| A030JTN01.1 | AUO | 3.0 | 960×480(dot) |
| C-51505NFJ-SLG-AHN | Kyocera | 3.0 | 20×2 |
| C-51505NFJ-SLW-APN | Kyocera | 3.0 | 20×2 |
| LH300WQ1-ED01 | LG Display | 3.0 | 240×400 |
| LS030Y7PW01 | SHARP | 3.0 | |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
| A030FL01 V2 | AUO | 3.0 | 480×272 |
| LTG500QV-F03 | Samsung | 5.0 | 320×240 |
