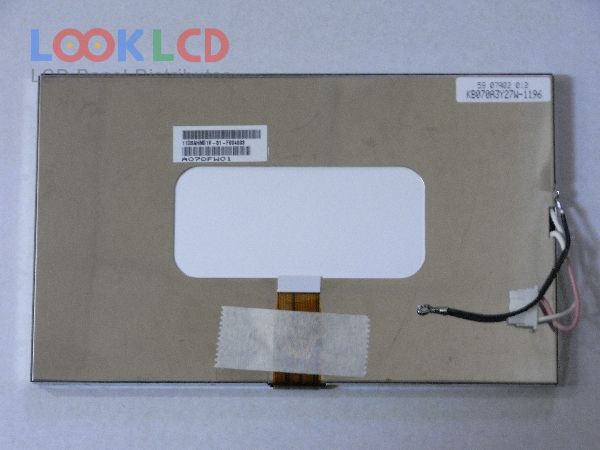

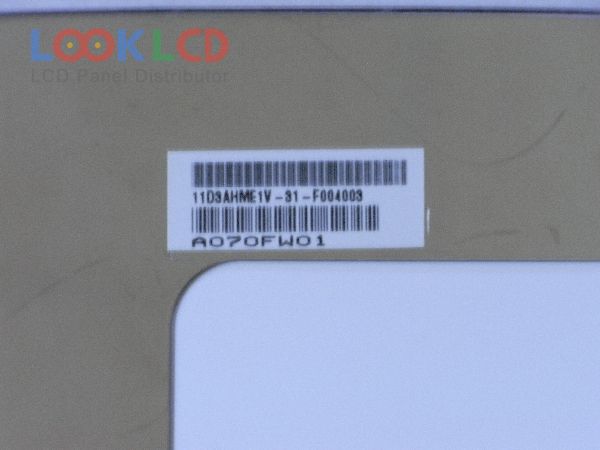

| Varenummer | A070FW01 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 480×234 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 150:1 |
| Farver | |
| Baggrundsbelysning | CCFL |
| Interface | Analog |
| panel mærke | AU Optronics |
| panel model | A070FW01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×234 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×86.58 mm |
| omrids | 166×100 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | |
| responstid | 25/30 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| indgangsspænding | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| A070FW01 | AUO | 7.0 | 480×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| A070FW03 VD | AUO | 7.0 | 480×234 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A070SN02 V0 | AUO | 7.0 | 800×600 |
| A070VW01 V2 | AUO | 7.0 | 800×480 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW08 V0 | AUO | 7.0 | 800×480 |
| A070XN01 V0 | AUO | 7.0 | 1024×768 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| A070VW05 V1 | AUO | 7.0 | 800×480 |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LB070WV7-TD02 | LG Display | 7.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| TX15D02VM0CAA | KOE | 5.8 | 400×240 |
