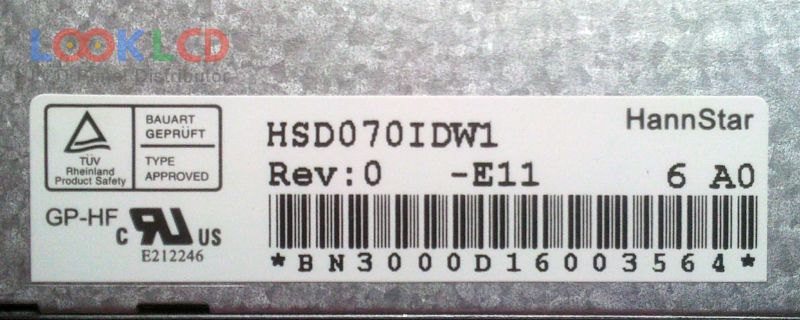

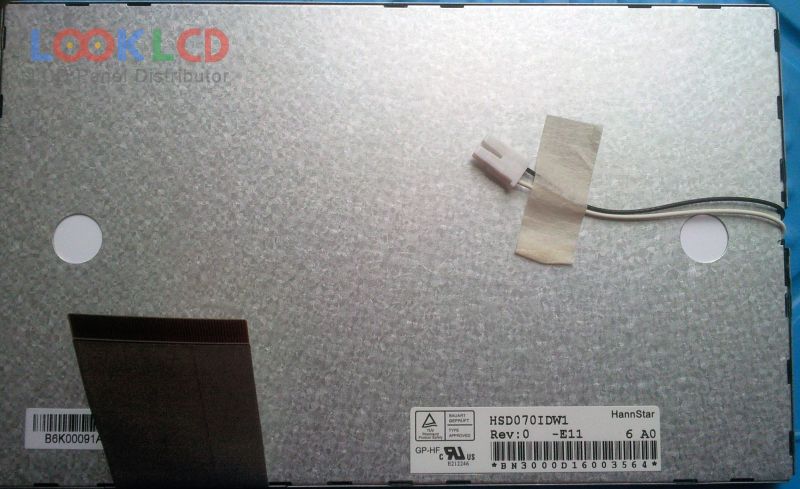

| Varenummer | HSD070IDW1-E11 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 500:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HannStar |
| panel model | HSD070IDW1-E11 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×86.64 mm |
| omrids | 164.9×100×6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| responstid | 5/20 (Typ.)(Tr/Td); |
| synsvinkel | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S9PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LB070WV7-TL01 | LG Display | 7.0 | 800×480 |
| LQ058T5DG31 | SHARP | 5.8 | 480×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| M101GWT9 R3 | IVO | 10.1 | 1024×600 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
