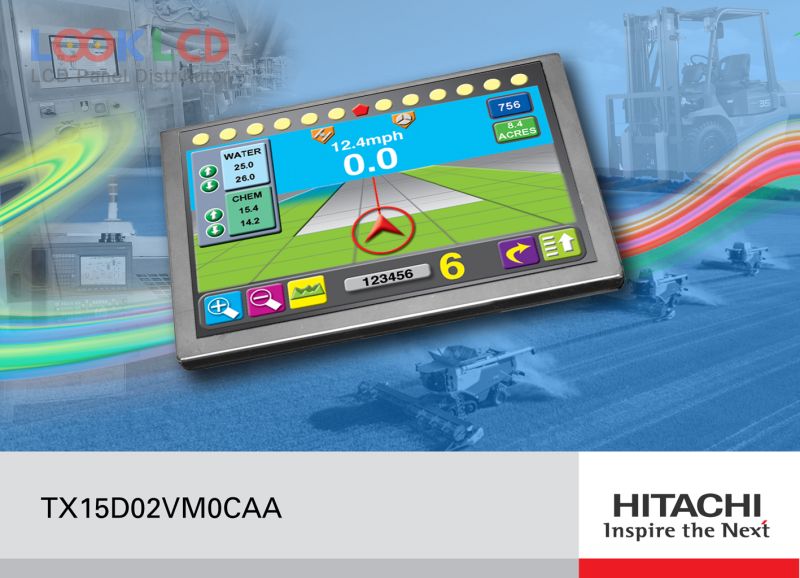

| Varenummer | TX15D02VM0CAA |
| Mærke | KOE |
| Størrelse | 5.8 |
| Ansøgning | CNS |
| Løsning | 400×240 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | HITACHI |
| panel model | TX15D02VM0CAA |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.8 inch |
| løsning | 400(RGB)×240 , WQVGA |
| visningstilstand | IPS Pro, Normally Black, Transmissive |
| aktivt område | 126×75.6 mm |
| omrids | 145×90×12 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 45 (Max.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S4PWLEDEmbedded (LED Driver) |
| signal interface | CMOS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
| C-51850NFQJ-LG-ACN | Kyocera | 5.8 | 40×2 |
| C-51850NFQJ-LW-AAN | Kyocera | 5.8 | 40×2 |
| C058GW01 V0 | AUO | 5.8 | 400×240 |
| LB058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LQ058Y5DG30A | SHARP | 5.8 | 800×480 |
| LQ6BW51N | SHARP | 5.8 | 480×234 |
| LQ6BW558T | SHARP | 5.8 | 480×234 |
| PM058OX1 | E Ink | 5.8 | 1280×768 |
| TX15D02VM0CAA | KOE | 5.8 | 400×240 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| CLAA069LA0ACW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| G121X1-L03 | Innolux | 12.1 | 1024×768 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| YX070DK02 | SEBO | 7.0 | 800×480 |
