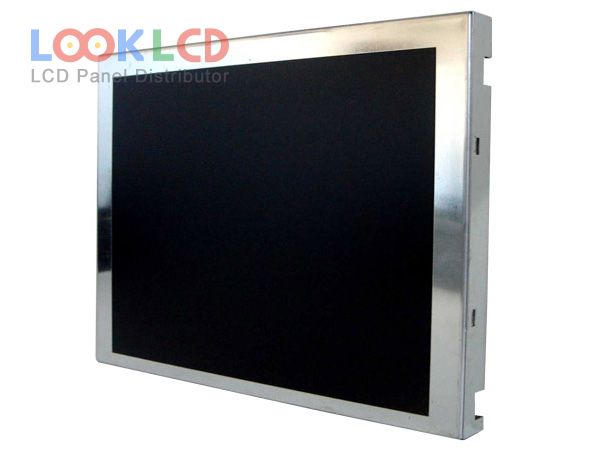

| Varenummer | A084SN01 V1 |
| Mærke | AUO |
| Størrelse | 8.4 |
| Ansøgning | GM |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 420 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | AU Optronics |
| panel model | A084SN01 V1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 199.8×150 mm |
| overflade | |
| lysstyrke | 420 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/25 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | CCFLEmbedded (Inverter) |
| signal interface | Parallel RGB (1 ch, 6-bit), 36 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | GM |
