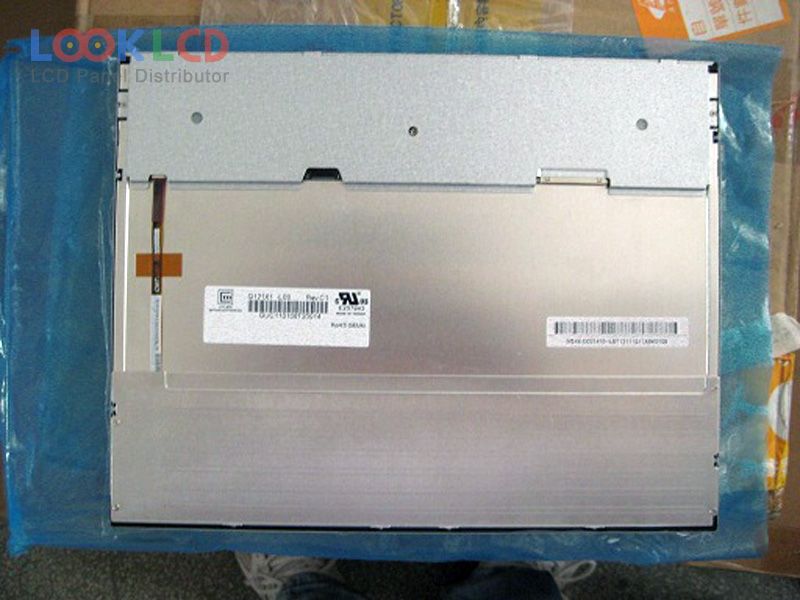

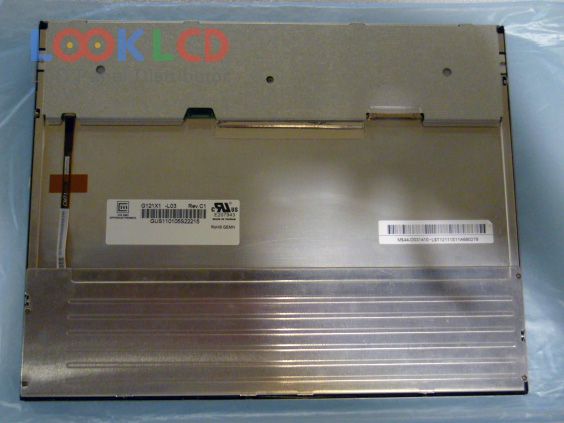

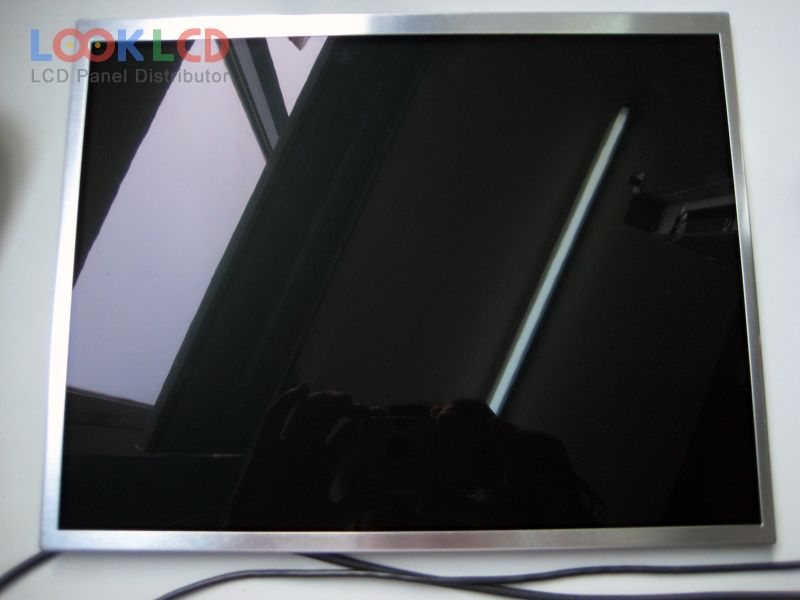

| Varenummer | G121X1-L03 |
| Mærke | Innolux |
| Størrelse | 12.1 |
| Ansøgning | CNS |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 700:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | G121X1-L03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 260.5×204×8.9 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC), CIE193163% |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | CNS |
