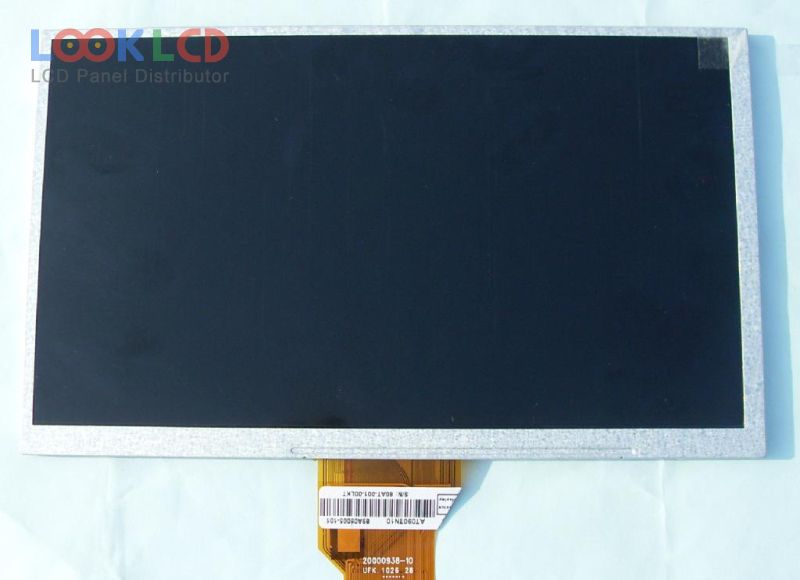

| Varenummer | AT090TN10 |
| Mærke | Innolux |
| Størrelse | 9.0 |
| Ansøgning | DPF |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CHIMEI INNOLUX |
| panel model | AT090TN10 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 198×111.696 mm |
| omrids | 211.1×126.5 mm |
| overflade | Antiglare |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 50 pins |
| indgangsspænding | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | DPF |
