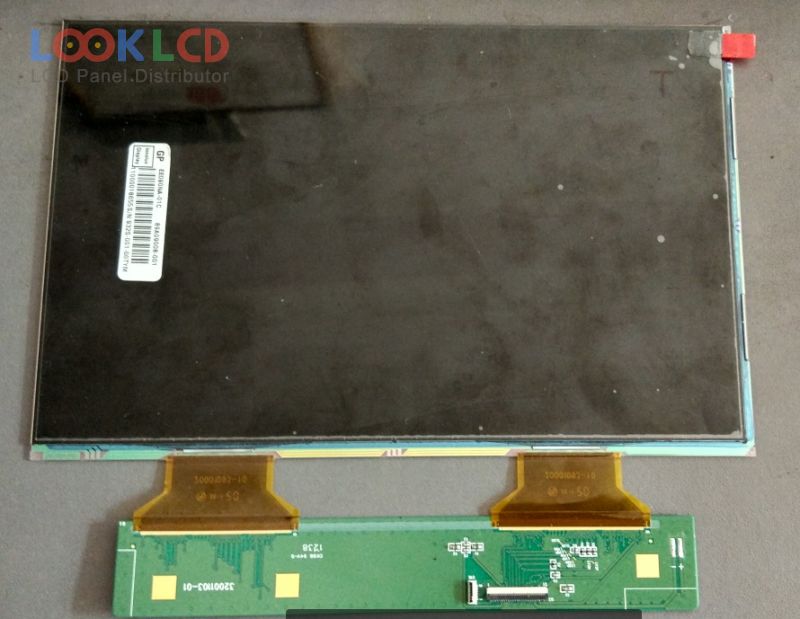

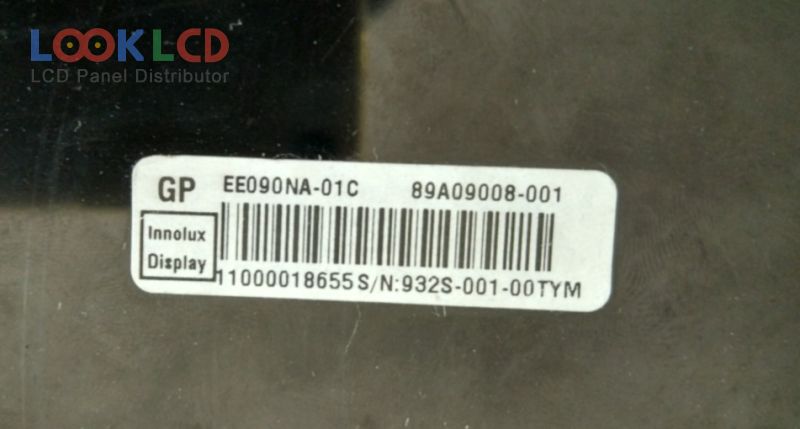

| Varenummer | EE090NA-01C |
| Mærke | Innolux |
| Størrelse | 9.0 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | TTL |
| panel mærke | CHIMEI INNOLUX |
| panel model | EE090NA-01C |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 9.0 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 193.92×121.2 mm |
| omrids | 201.46×130.66 mm |
| overflade | |
| glas dybde | 0.50+0.50 mm |
| transmissivitet | 3.39% (Typ.)(with APCF) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | Parallel RGB (1 ch, 8-bit), 102 pins |
| indgangsspænding | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| Ansøgning | PAD |
